Washers
LOCK WASHER SPLIT USS ZINC 1/4" HIGH ALLOY 1000/BAG
8LW14-M
- A coiled, hardened split circular washer with a slightly trapezoidal wire section.
- Applies greater bolt tension per unit of applied torque.
- Provides a hardened bearing surface and more uniform load distribution.
- Steel, yellow zinc plated.
- Resists loosening caused by vibration and corrosion.
- For use with grade 8 bolts.
- Rockwell Hardness: C38-46
- Inside Diameter: Min .252 Max .260
- Outside Diameter: 0.487
$252.00
$0.252
$0.252
LOCK WASHER SPLIT USS ZINC 3/4" HIGH ALLOY
8LW34
- A coiled, hardened split circular washer with a slightly trapezoidal wire section.
- Applies greater bolt tension per unit of applied torque.
- Provides a hardened bearing surface and more uniform load distribution.
- Steel, yellow zinc plated.
- Resists loosening caused by vibration and corrosion.
- For use with grade 8 bolts.
- Rockwell Hardness: C38-46
- Inside Diameter: Min .753 Max .766
- Outside Diameter: 1.265
$17.74
$0.7096
$0.7096
LOCK WASHER SPLIT USS ZINC 3/8" HIGH ALLOY
8LW38
- A coiled, hardened split circular washer with a slightly trapezoidal wire section.
- Applies greater bolt tension per unit of applied torque.
- Provides a hardened bearing surface and more uniform load distribution.
- Steel, yellow zinc plated.
- Resists loosening caused by vibration and corrosion.
- For use with grade 8 bolts.
- Rockwell Hardness: C38-46
- Inside Diameter: Min .377 Max .385
- Outside Diameter: 0.68
$22.95
$0.2295
$0.2295
LOCK WASHER SPLIT USS ZINC 1/2" HIGH ALLOY
8LW50
- A coiled, hardened split circular washer with a slightly trapezoidal wire section.
- Applies greater bolt tension per unit of applied torque.
- Provides a hardened bearing surface and more uniform load distribution.
- Steel, yellow zinc plated.
- Resists loosening caused by vibration and corrosion.
- For use with grade 8 bolts.
- Rockwell Hardness: C38-46
- Inside Diameter: Min .502 Max .512
- Outside Diameter: 0.869
$35.28
$0.3528
$0.3528
LOCK WASHER SPLIT USS ZINC 5/16" HIGH ALLOY
8LW56
- A coiled, hardened split circular washer with a slightly trapezoidal wire section.
- Applies greater bolt tension per unit of applied torque.
- Provides a hardened bearing surface and more uniform load distribution.
- Steel, yellow zinc plated.
- Resists loosening caused by vibration and corrosion.
- For use with grade 8 bolts.
- Rockwell Hardness: C38-46
- Inside Diameter: Min .314 Max .322
- Outside Diameter: 0.583
$33.00
$0.33
$0.33
LOCK WASHER SPLIT USS ZINC 5/8" HIGH ALLOY
8LW58
- A coiled, hardened split circular washer with a slightly trapezoidal wire section.
- Applies greater bolt tension per unit of applied torque.
- Provides a hardened bearing surface and more uniform load distribution.
- Steel, yellow zinc plated.
- Resists loosening caused by vibration and corrosion.
- For use with grade 8 bolts.
- Rockwell Hardness: C38-46
- Inside Diameter: Min .628 Max .641
- Outside Diameter: 1.073
$23.56
$0.4712
$0.4712
LOCK WASHER SPLIT USS ZINC 7/8" HIGH ALLOY
8LW78
- A coiled, hardened split circular washer with a slightly trapezoidal wire section.
- Applies greater bolt tension per unit of applied torque.
- Provides a hardened bearing surface and more uniform load distribution.
- Steel, yellow zinc plated.
- Resists loosening caused by vibration and corrosion.
- For use with grade 8 bolts.
- Rockwell Hardness: C38-46
- Inside Diameter: Min .878 Max .894
- Outside Diameter: 1.459
$52.20
$2.0878
$2.0878
LOCK WASHER SPLIT USS ZINC 7/16" HIGH ALLOY
8LW76
- A coiled, hardened split circular washer with a slightly trapezoidal wire section.
- Applies greater bolt tension per unit of applied torque.
- Provides a hardened bearing surface and more uniform load distribution.
- Steel, yellow zinc plated.
- Resists loosening caused by vibration and corrosion.
- For use with grade 8 bolts.
- Rockwell Hardness: C38-46
- Inside Diameter: Min .440 Max .450
- Outside Diameter: 0.776
$33.60
$0.336
$0.336
FLAT WASHER SAE ZINC 1" THRU HARDENED
8SFW1
- Used to improve stress distribution, and to span large holes.
- Yellow zinc plated.
- Made from heat treated thru-hardened steel.
- SAE PATTERN
- Outside Diameter: 2"
- Inside Diameter: 1-1/16"
$28.54
$1.1417
$1.1417

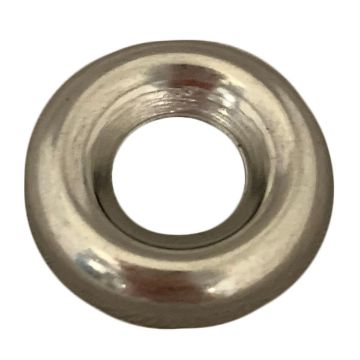

FINISH WASHER COUNTER-SUNK SS 1/4"
CSFW14
- A circular washer designed for use with flat or oval head screws.
- Designed for accommodating the heads of countersunk screws.
- Provides additional bearing area on the material being fastened.
- Provides a neat, finished appearance.
- Made from 18-8 stainless steel.
$17.10
$0.171
$0.171
LOCK WASHER EXTERNAL ZINC #10 EXTERNAL TOOTHED
ELW10
- A hardened circular washer with twisted prongs or teeth which extend out from the outer edge of the washer.
- Most common of all tooth-lock washers.
- Offers the greatest locking efficiency since the teeth are on the largest radius.
- Made from spring steel, zinc plated.
- Rockwell Hardness: C40-50
- Inside Diameter: Min .195 Max .204
- Outside Diameter: Min .395 Max .410
- Thickness: Min .018 Max .024
$4.60
$0.046
$0.046
LOCK WASHER EXTERNAL ZINC 1/4" EXTERNAL TOOTHED
ELW14
- A hardened circular washer with twisted prongs or teeth which extend out from the outer edge of the washer.
- Most common of all tooth-lock washers.
- Offers the greatest locking efficiency since the teeth are on the largest radius.
- Made from spring steel, zinc plated.
- Rockwell Hardness: C40-50
- Inside Diameter: Min .256 Max .267
- Outside Diameter: Min .494 Max .510
- Thickness: Min .023 Max .028
$11.00
$0.11
$0.11
LOCK WASHER EXTERNAL ZINC 3/4" EXTERNAL TOOTHED
ELW34
- A hardened circular washer with twisted prongs or teeth which extend out from the outer edge of the washer.
- Most common of all tooth-lock washers.
- Offers the greatest locking efficiency since the teeth are on the largest radius.
- Made from spring steel, zinc plated.
- Rockwell Hardness: C40-50
- Inside Diameter: Min .768 Max .795
- Outside Diameter: Min 1.220 Max 1.260
- Thickness: Min .047 Max .055
$49.70
$0.497
$0.497
LOCK WASHER EXTERNAL ZINC 3/8" EXTERNAL TOOTHED
ELW38
- A hardened circular washer with twisted prongs or teeth which extend out from the outer edge of the washer.
- Most common of all tooth-lock washers.
- Offers the greatest locking efficiency since the teeth are on the largest radius.
- Made from spring steel, zinc plated.
- Rockwell Hardness: C40-50
- Inside Diameter: Min .384 Max .398
- Outside Diameter: Min .670 Max .694
- Thickness: Min .032 Max .040
$15.60
$0.156
$0.156
LOCK WASHER EXTERNAL ZINC 5/8" EXTERNAL TOOTHED
ELW58
- A hardened circular washer with twisted prongs or teeth which extend out from the outer edge of the washer.
- Most common of all tooth-lock washers.
- Offers the greatest locking efficiency since the teeth are on the largest radius.
- Made from spring steel, zinc plated.
- Rockwell Hardness: C40-50
- Inside Diameter: Min .641 Max .663
- Outside Diameter: Min 1.045 Max 1.070
- Thickness: Min .042 Max .050
$36.08
$0.3608
$0.3608
LOCK WASHER EXTERNAL ZINC 1/2" EXTERNAL TOOTHED
ELW50
- A hardened circular washer with twisted prongs or teeth which extend out from the outer edge of the washer.
- Most common of all tooth-lock washers.
- Offers the greatest locking efficiency since the teeth are on the largest radius.
- Made from spring steel, zinc plated.
- Rockwell Hardness: C40-50
- Inside Diameter: Min .513 Max .530
- Outside Diameter: Min .880 Max .900
- Thickness: Min .037 Max .045
$36.52
$0.3652
$0.3652
LOCK WASHER EXTERNAL ZINC 5/16" EXTERNAL TOOTHED
ELW56
- A hardened circular washer with twisted prongs or teeth which extend out from the outer edge of the washer.
- Most common of all tooth-lock washers.
- Offers the greatest locking efficiency since the teeth are on the largest radius.
- Made from spring steel, zinc plated.
- Rockwell Hardness: C40-50
- Inside Diameter: Min .320 Max .332
- Outside Diameter: Min .588 Max .610
- Thickness: Min .028 Max .034
$17.20
$0.172
$0.172
LOCK WASHER EXTERNAL ZINC 7/16" EXTERNAL TOOTHED
ELW76
- A hardened circular washer with twisted prongs or teeth which extend out from the outer edge of the washer.
- Most common of all tooth-lock washers.
- Offers the greatest locking efficiency since the teeth are on the largest radius.
- Made from spring steel, zinc plated.
- Rockwell Hardness: C40-50
- Inside Diameter: Min .448 Max .464
- Outside Diameter: Min .740 Max .760
- Thickness: Min .032 Max .040
$26.16
$0.2616
$0.2616
LOCK WASHER EXTERNAL ZINC #6 EXTERNAL TOOTHED
ELW6
- A hardened circular washer with twisted prongs or teeth which extend out from the outer edge of the washer.
- Most common of all tooth-lock washers.
- Offers the greatest locking efficiency since the teeth are on the largest radius.
- Made from spring steel, zinc plated.
- Rockwell Hardness: C40-50
- Inside Diameter: Min .141 Max .150
- Outside Diameter: Min .305 Max .320
- Thickness: Min .016 Max .022
$5.80
$0.058
$0.058
LOCK WASHER EXTERNAL ZINC #8 EXTERNAL TOOTHED
ELW8
- A hardened circular washer with twisted prongs or teeth which extend out from the outer edge of the washer.
- Most common of all tooth-lock washers.
- Offers the greatest locking efficiency since the teeth are on the largest radius.
- Made from spring steel, zinc plated.
- Rockwell Hardness: C40-50
- Inside Diameter: Min.168 Max .176
- Outside Diameter: Min .365 Max .381
- Thickness: Min .018 Max .023
$4.40
$0.044
$0.044
FLAT WASHER METRIC ZINC M10
FW10M
- Used to improve stress distribution, and to span large holes.
- Din 125A
- Made from low carbon steel, zinc plated.
- Inside Diameter: Min 10.5 Max 10.77
- Outside Diameter: Min 19.48 Max 20
$17.70
$0.177
$0.177
LOCK WASHER INT-EXT ZINC 1/4" INTERNAL-EXTERNAL TOOTH
IE14LW
- A hardened circular washer with twisted prongs or teeth protruding from both the inside and outside edges of the washer.
- Preferred in the following situations: Where a larger bearing surface is desired. For an optimum electrical connection. Where the hole is oversized or out of round. An insert between two adjustable pieces where a longitudinal or rotational adjustment must be maintained.
- Made from spring steel, zinc plated.
- Rockwell Hardness: C40-50.
- Inside Diameter: Min .256 Max .267
- Outside Diameter: Min .725 Max .760
- Thickness: Min .032 Max .040
$38.28
$0.3828
$0.3828
LOCK WASHER INT-EXT ZINC 3/16" INTERNAL-EXTERNAL TOOTH
IE36LW
- A hardened circular washer with twisted prongs or teeth protruding from both the inside and outside edges of the washer.
- Preferred in the following situations: Where a larger bearing surface is desired. For an optimum electrical connection. Where the hole is oversized or out of round. An insert between two adjustable pieces where a longitudinal or rotational adjustment must be maintained.
- Made from spring steel, zinc plated.
- Rockwell Hardness: C40-50.
- Inside Diameter: Min .195 Max .204
- Outside Diameter: Min .580 Max .610
- Thickness: Min .028 Max .034
$21.45
$0.2145
$0.2145
LOCK WASHER INTERNAL ZINC #10 INTERNAL TOOTHED
ILW10
- A hardened circular washer with twisted prongs or teeth which extend inward from the inside edge of the washer.
- This style is preferred when finished appearance is crucial and the teeth must be hidden under the head of the screw
- Made from spring steel, zinc plated.
- Rockwell Hardness: C40-50.
- Inside Diameter: Min .195 Max .204
- Outside Diameter: Min .365 Max .381
- Thickness: Min .018 Max .024
$4.20
$0.042
$0.042
