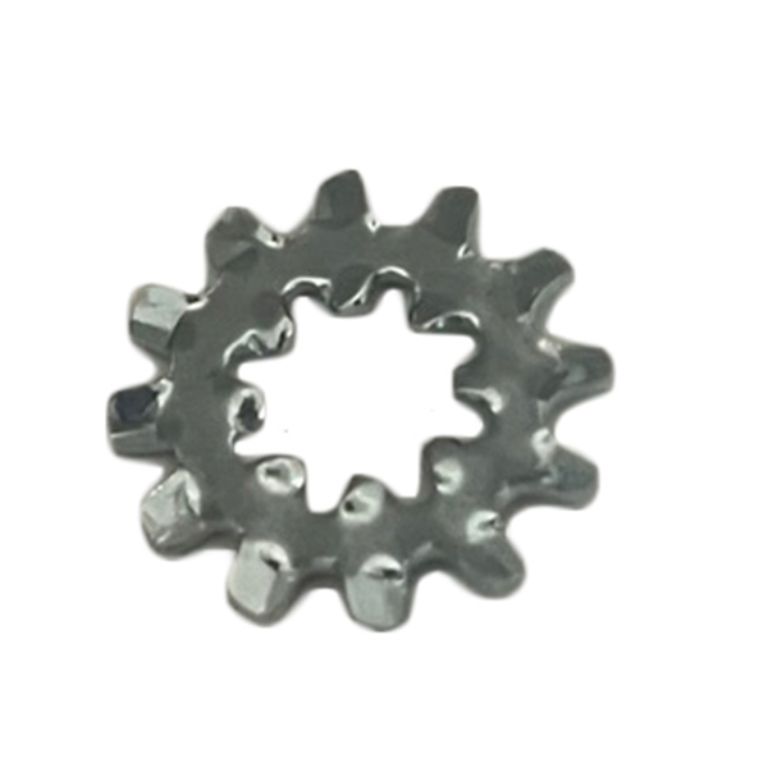

LOCK WASHER INT-EXT ZINC 1/4" INTERNAL-EXTERNAL TOOTH

  • A hardened circular washer with twisted prongs or teeth protruding from both the inside and outside edges of the washer.
  • Preferred in the following situations: Where a larger bearing surface is desired. For an optimum electrical connection. Where the hole is oversized or out of round. An insert between two adjustable pieces where a longitudinal or rotational adjustment must be maintained.
  • Made from spring steel, zinc plated.
  • Rockwell Hardness: C40-50.
  • Inside Diameter: Min .256 Max .267
  • Outside Diameter: Min .725 Max .760
  • Thickness: Min .032 Max .040
    Part #: IE14LW
    Availability:
    In Stock
    Price: $38.28
    $0.3828
    i h h
    The LOCK WASHER INT-EXT ZINC 1/4" features hardened circular construction with twisted prongs on both the inner and outer edges, enhancing grip in mechanical assemblies. Ideal for applications requiring a larger bearing surface or where an optimum electrical connection is necessary. This washer is particularly effective for oversized or out-of-round holes and provides reliable performance in adjustable settings. Made from durable spring steel and coated with zinc for added corrosion resistance, this washer ensures longevity and reliability in demanding environments.
