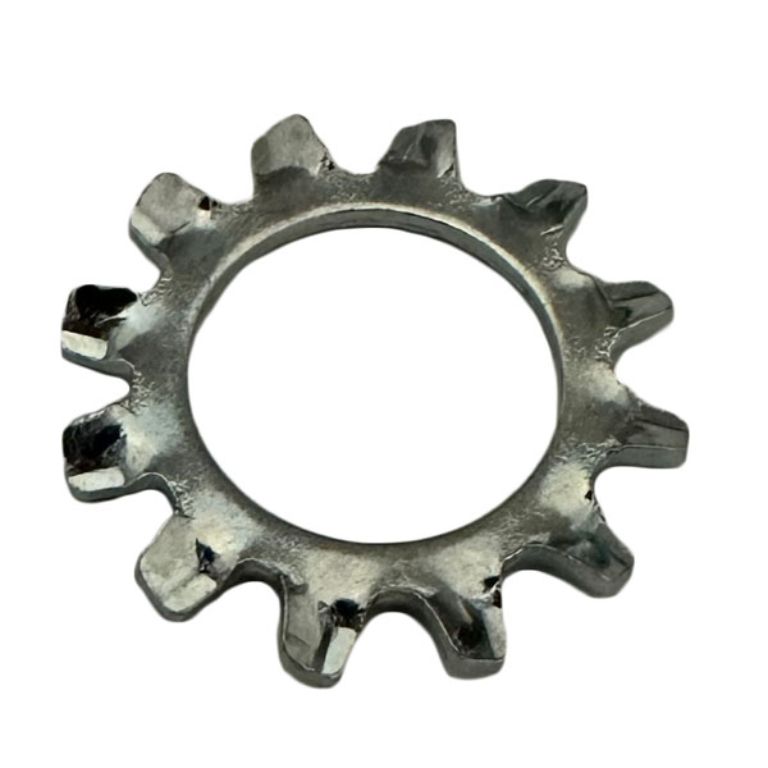

LOCK WASHER EXTERNAL ZINC 3/8" EXTERNAL TOOTHED

  • A hardened circular washer with twisted prongs or teeth which extend out from the outer edge of the washer.
  • Most common of all tooth-lock washers.
  • Offers the greatest locking efficiency since the teeth are on the largest radius.
  • Made from spring steel, zinc plated.
  • Rockwell Hardness: C40-50
  • Inside Diameter: Min .384 Max .398
  • Outside Diameter: Min .670 Max .694
  • Thickness: Min .032 Max .040
    Part #: ELW38
    Availability:
    In Stock
    Price: $15.60
    $0.156
    i h h
    The LOCK WASHER EXTERNAL ZINC 3/8" EXTERNAL TOOTHED is a hardened circular washer designed with twisted prongs extending from its outer edge. This washer is recognized as the most common type of tooth-lock washer, providing superior locking efficiency due to its teeth positioned on the largest radius. Made from high-strength spring steel and coated with zinc for corrosion resistance, it is ideal for use in automotive and industrial assemblies where secure fastening is essential.
