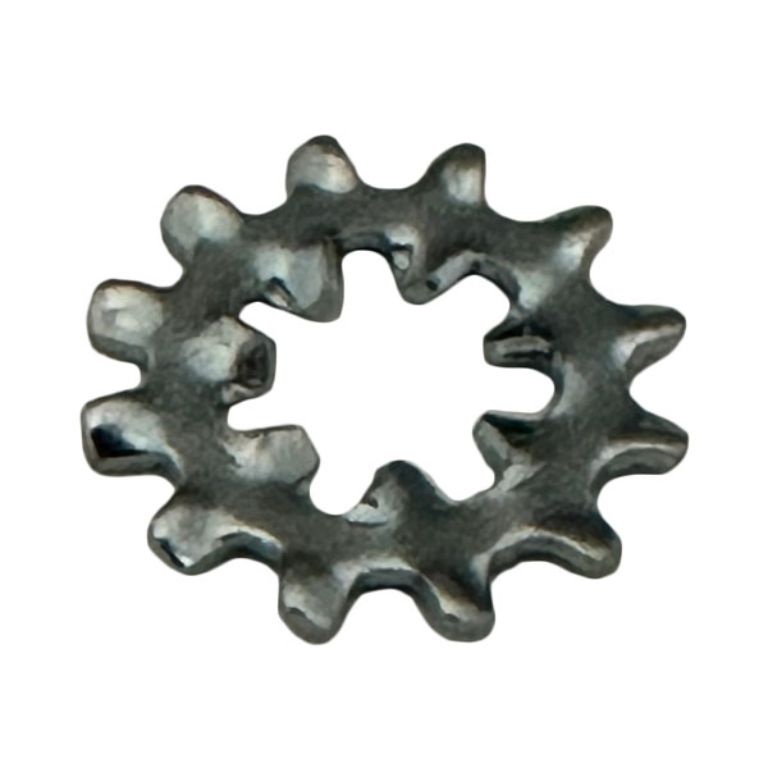

LOCK WASHER INT-EXT ZINC 3/16" INTERNAL-EXTERNAL TOOTH

  • A hardened circular washer with twisted prongs or teeth protruding from both the inside and outside edges of the washer.
  • Preferred in the following situations: Where a larger bearing surface is desired. For an optimum electrical connection. Where the hole is oversized or out of round. An insert between two adjustable pieces where a longitudinal or rotational adjustment must be maintained.
  • Made from spring steel, zinc plated.
  • Rockwell Hardness: C40-50.
  • Inside Diameter: Min .195 Max .204
  • Outside Diameter: Min .580 Max .610
  • Thickness: Min .028 Max .034
    Part #: IE36LW
    Availability:
    In Stock
    Price: $21.45
    $0.2145
    i h h
    The LOCK WASHER INT-EXT ZINC 3/16" features internal and external teeth for superior holding power and a larger bearing surface. Made from hardened spring steel, this washer is ideal for maintaining adjustments in both longitudinal and rotational applications. It effectively provides an optimal electrical connection and compensates for oversized or out-of-round holes. Designed for reliable performance in demanding environments, this washer is essential for ensuring component integrity and stability.
