Brass Fittings

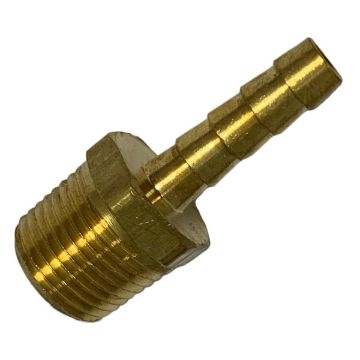

BRASS BARB FITTING MALE CONN 1/2 HOSE 3/8 PIPE
XBARBM8X6
- Compact one-piece, push-on barbed fittings.
- Quick and economical way to connect tubing.
- These fittings are intended to be used with worm gear hose clamps.
- Male connector
- Size 1/2" hose i.d., 3/8" male pipe
$32.9175
$6.5835
$6.5835
BRASS BARB FITTING MALE CONN 1/2 HOSE 1/2 PIPE
XBARBM8X8
- Compact one-piece, push-on barbed fittings.
- Quick and economical way to connect tubing.
- These fittings are intended to be used with worm gear hose clamps.
- Male connector
- Size 1/2" hose i.d., 1/2" male pipe
$39.105
$7.821
$7.821
BRASS BARB FITTING HOSE SPLICER 1/2 HOSE
XBARBU8
- Compact one-piece, push-on barbed fittings.
- Quick and economical way to connect tubing.
- These fittings are intended to be used with worm gear hose clamps.
- Union connector
- Size 1/2" hose i.d.
$29.81
$5.962
$5.962
BRASS BARB FITTING HOSE SPLICER 1/4 HOSE
XBARBU4
- Compact one-piece, push-on barbed fittings.
- Quick and economical way to connect tubing.
- These fittings are intended to be used with worm gear hose clamps.
- Union connector
- Size 1/4" hose i.d.
$22.50
$4.50
$4.50
BRASS BARB FITTING HOSE SPLICER 5/16 HOSE
XBARBU5
- Compact one-piece, push-on barbed fittings.
- Quick and economical way to connect tubing.
- These fittings are intended to be used with worm gear hose clamps.
- Union connector
- Size 5/16" hose i.d.
$21.00
$4.20
$4.20
BRASS BARB FITTING HOSE SPLICER 3/8 HOSE
XBARBU6
- Compact one-piece, push-on barbed fittings.
- Quick and economical way to connect tubing.
- These fittings are intended to be used with worm gear hose clamps.
- Union connector
- Size 3/8" hose i.d.
$22.80
$4.56
$4.56
BRASS BARB FITTING HOSE SPLICER 3/16 HOSE
XBARBU3
- Compact one-piece, push-on barbed fittings.
- Quick and economical way to connect tubing.
- These fittings are intended to be used with worm gear hose clamps.
- Union connector
- Size 3/16" hose i.d.
$24.42
$4.884
$4.884
BRASS PIPE NIPPLE 3/8" X 3-1/2"
XBRLN38X312
- Pipe brass fitting
- The most common form of brass fittings.
- They are used with brass, bronze, and iron pipe.
- Applications include grease, fuels, LP and natural gas, refrigeration, instrumentation and hydraulic systems.
- There are no nuts or sleeves used.
- The fitting has threads referred to as National Pipe Threads (NPT).
- Size 3/8" pipe x 3-1/2" long
$22.1213
MALE CONNECTOR 3/8" T X 3/8" P, PUSH IN A/B
XP6520-06-06
- Nickel plated, all metal collet and release ring
- Collet design offers greater grip strength under high pressure or tubing tension
- Collet release mechanism based on relaxed slope of grip teeth, as opposed to disengaging bite-rings from partially cut tubes
- Male 90° elbow swivel
- 3/8" tube to 3/8" male pipe
$32.2125
BRASS PEX ELBOW, 1/2" PEX BARB X 1/2" PEX BARB
XPEX908X8
- Crimp style PEX fitting can be installed using copper crimp rings or stainless steel PEX clamps and a PEX crimp tool
- Manufactured to ASTM F1807
- For use with 1/2" PEX tubing
$3.90
BRASS PEX STRAIGHT FEMALE ADAPTER, SWIVEL 1/2" PEX BARB X 1/2" FEMALE THREAD
XPEXFS8X8
- PEX female threaded swivel adapter
- Connects 1/2" PEX tubing to 1/2" male threaded connections
- Can be used with the copper crimp rings or stainless steel PEX clamps
$66.00
$6.60
$6.60
BRASS PEX MALE ADAPTER 1/2" PEX BARB X 1/2" MALE PIPE THREAD
XPEXM8X8
- PEX male thread adapters are used when it is necessary to connect PEX tubing to a thread fitting
- Crimp style PEX fitting can be installed using copper crimp rings or stainless steel PEX clamps and a PEX crimp tool
- Manufactured to ASTM F1807
- For use with 1/2" PEX tubing and 1/2" female threaded fittings
$7.425
BRASS PEX BARB TEE 1/2" X 1/2" X 1/2"
XPEXT8X8
- PEX Tee is used to branch off the existing water line where needed
- Manufactured to ASTM F1807
- For use with 1/2" PEX Tubing
- This cannot be used for potable water applications, including for drinking and cooking
- This product can be used for non-potable water applications only
$5.775
PEX UNION 1/2" X 1/2"
XPEXU8X8
- PEX couplings are used to connect two ends of PEX tubing together
- Crimp style PEX fitting can be installed using copper crimp rings or stainless steel PEX clamps and a PEX crimp tool
- Manufactured to ASTM F1807
- For use with 1/2" PEX tubing
$4.80
BRASS TRANSMISSION SPLIT SLEEVE 1/8"
X60TFX2
- These are typically used in pressure protected air transmission applications and air seats.
- The fittings use a notched sleeve to help eliminate stress from over-torque.
- These fittings are used with smaller nylon tubing, usually 1/8" and 5/32".
- These are DOT approved.
- Easy to assemble, no flaring required.
- Split sleeve
- Size 1/8" tubing o.d.
$42.25
$1.69
$1.69
BRASS TRANSMISSION SPLIT SLEEVE 5/32"
X60TFX532
- These are typically used in pressure protected air transmission applications and air seats.
- The fittings use a notched sleeve to help eliminate stress from over-torque.
- These fittings are used with smaller nylon tubing, usually 1/8" and 5/32".
- These are DOT approved.
- Easy to assemble, no flaring required.
- Size 5/32" tubing o.d.
$85.605
$3.4242
$3.4242
BRASS COMPRESSION SLEEVE 1/8"
X60X2
- Compression brass fitting
- Meets functional requirements of SAE J512.
- No flaring, soldering or other preparation of tubing necessary to assemble.
- It is used with aluminum, copper and plastic tubing.
- Not recommended for use with steel tubing.
- Compression sleeve
- Size 1/8" tubing o.d.
$24.50
$0.98
$0.98
BRASS COMPRESSION SLEEVE 1/4"
X60X4
- Compression brass fitting
- Meets functional requirements of SAE J512.
- No flaring, soldering or other preparation of tubing necessary to assemble.
- It is used with aluminum, copper and plastic tubing.
- Not recommended for use with steel tubing.
- Compression sleeve
- Size 1/4" tubing o.d.
$35.75
$1.43
$1.43
BRASS COMPRESSION SLEEVE 3/8"
X60X6
- Compression brass fitting
- Meets functional requirements of SAE J512.
- No flaring, soldering or other preparation of tubing necessary to assemble.
- It is used with aluminum, copper and plastic tubing.
- Not recommended for use with steel tubing.
- Compression sleeve
- Size 3/8" tubing o.d.
$18.935
$0.7574
$0.7574
BRASS TRANSMISSION NUT 1/8"
X61TFX2
- Transmission fitting
- These are typically used in pressure protected air transmission applications and air seats.
- The fittings use a notched sleeve to help eliminate stress from over-torque.
- These fittings are used with smaller nylon tubing, usually 1/8" and 5/32".
- These are DOT approved.
- Easy to assemble, no flaring required.
$134.70
$5.388
$5.388

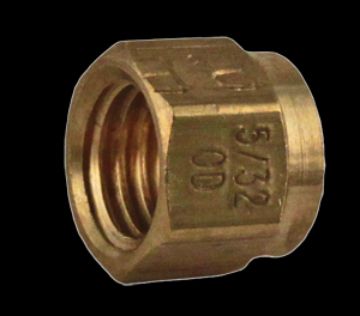

BRASS TRANSMISSION NUT 5/32"
X61TFX532
- Transmission fitting
- These are typically used in pressure protected air transmission applications and air seats.
- The fittings use a notched sleeve to help eliminate stress from over-torque.
- These fittings are used with smaller nylon tubing, usually 1/8" and 5/32".
- These are DOT approved.
- Easy to assemble, no flaring required.
- Size 5/32" tubing o.d.
$87.00
$3.48
$3.48
