Brass Fittings
PUSH TO CONNECT, NON-DOT BRASS UNION, 1/4" TUBE
X1162X4
- Push to connect fitting
- Ready to use compact one-piece fittings for use with most thermoplastic tubing.
- Specially designed for low pressure circuits where fast assembly, disassembly and reassembly is important.
- No special tools are needed for assembly.
- Designed to be used with no tube support.
- Union connector
- Size 1/4" tubing o.d.
$50.625
$10.125
$10.125
PUSH TO CONNECT, NON-DOT, NICKLE PLATED BRASS, 90 DEGREE ELBOW UNION, 1/4" TUBE
X1165X4
- Push to connect fitting
- Designed to be used with no tube support.
- Specially designed for low pressure circuits where fast assembly, disassembly and reassembly is important.
- Union elbow.
- Used with most thermoplastic tubing.
- Union elbow connector
- Size 1/4" tubing o.d.
$13.9485
HOSE END MALE PIPE RIGID 1/2" HOSE X 1/2" MALE PIPE
X10008B-108
- Compact one-piece, push-on barbed fittings.
- Quick and economical way to connect tubing.
- Easy to assemble, just push the fitting onto the hose. No hose clamp needed.
- Typical application: Low pressure shop or service air lines.
- Male pipe rigid connector
- Size 1/2" hose i.d., 1/2" male pipe
$99.50
$9.95
$9.95
BRASS TUBE NUT INVERTED FLARE 3/16"
X100X3
- Inverted flare fitting
- Manufactured from either CA360 or CA345 brass.
- Used with copper, brass, aluminum and steel hydraulic tubing.
- The seat on this style of fitting is inverted to resist mechanical pullout.
- The tube end will have an inverted cone on the inside.
- Tube nut
- Size 3/16" tubing o.d.
$13.975
$1.3975
$1.3975

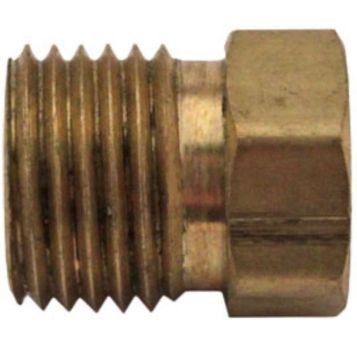

BRASS TUBE NUT INVERTED FLARE 1/4"
X100X4
- Inverted flare fitting
- Manufactured from either CA360 or CA345 brass.
- Used with copper, brass, aluminum and steel hydraulic tubing.
- The seat on this style of fitting is inverted to resist mechanical pullout.
- The tube end will have an inverted cone on the inside.
- Tube nut
- Size 1/4" tubing o.d.
$16.231
$1.6231
$1.6231

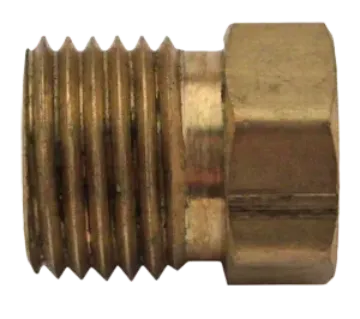

BRASS TUBE NUT INVERTED FLARE 5/16"
X100X5
- Inverted flare fitting
- Manufactured from either CA360 or CA345 brass.
- Used with copper, brass, aluminum and steel hydraulic tubing.
- The seat on this style of fitting is inverted to resist mechanical pullout.
- The tube end will have an inverted cone on the inside.
- Tube nut
- Size 5/16" tubing o.d.
$19.448
$1.9448
$1.9448
PUSH TO CONNECT, DOT BRASS UNION TEE, 3/8" TUBE
X264PMTX6
- These are the quick disconnect version of nylon air brake (DOT) brass fittings.
- They are DOT approved and will be marked as such.
- Used with SAE J844 nylon tubing, no special tools required.
- There are no nuts or sleeves used in their application.
- Union tee connector
$166.6125
$33.3225
$33.3225
PUSH TO CONNECT, DOT BRASS UNION TEE 1/4" TUBE
X264PMTX4
- These are the quick disconnect version of nylon air brake (DOT) brass fittings.
- They are DOT approved and will be marked as such.
- Used with SAE J844 nylon tubing, no special tools required.
- There are no nuts or sleeves used in their application.
- Union tee connector
- Size 1/4" tubing o.d.
$76.5215
$15.3043
$15.3043
PUSH TO CONNECT, DOT BRASS UNION TEE, 1/2" TUBE
X264PMTX8
- These are the quick disconnect version of nylon air brake (DOT) brass fittings.
- They are DOT approved and will be marked as such.
- Used with SAE J844 nylon tubing, no special tools requir
- There are no nuts or sleeves used in their application.
- Union tee connector
- 1/2" Tube
$199.2375
$39.8475
$39.8475
PUSH TO CONNECT, DOT BRASS MALE 90 DEGREE ELBOW, NON SWIVEL, 1/4" TUBE X 1/4" MALE PIPE
X269PMTNSX4X4
- These are the quick disconnect version of nylon air brake (DOT) brass fittings.
- They are DOT approved and will be marked as such.
- Used with SAE J844 nylon tubing, no special tools required.
- There are no nuts or sleeves used in their application.
- 90° male elbow, non swivel
- Size 1/4" tubing o.d., 1/4" male pipe
$56.385
$11.277
$11.277
PUSH TO CONNECT, DOT BRASS MALE 90 DEGREE ELBOW, NON SWIVEL, 5/8" TUBE X 3/8" MALE PIPE
X269PMTNSX10X6
- These are the quick disconnect version of nylon air brake (DOT) brass fittings.
- They are DOT approved and will be marked as such.
- Used with SAE J844 nylon tubing, no special tools requir
- There are no nuts or sleeves used in their application.
- 90° male elbow, non-swivel
- 5/8" tube to 3/8" male pipe
$28.80
PUSH TO CONNECT, DOT BRASS MALE 90 DEGREE ELBOW, NON SWIVEL, 3/8" TUBE X 1/8" MALE PIPE
X269PMTNSX6X2
- These are the quick disconnect version of nylon air brake (DOT) brass fittings.
- They are DOT approved and will be marked as such.
- Used with SAE J844 nylon tubing, no special tools required.
- There are no nuts or sleeves used in their application.
- 90° male elbow, non-swivel
$177.345
$35.469
$35.469
PUSH TO CONNECT, DOT BRASS MALE 90 DEGREE ELBOW, NON SWIVEL, 3/8" TUBE X 3/8" MALE PIPE
X269PMTNSX6X6
- These are the quick disconnect version of nylon air brake (DOT) brass fittings.
- They are DOT approved and will be marked as such.
- Used with SAE J844 nylon tubing, no special tools required.
- There are no nuts or sleeves used in their application.
- 90° male elbow, non swivel
- Size 3/8" tubing o.d., 3/8" male pipe
$98.5875
$19.7175
$19.7175
PUSH TO CONNECT, DOT BRASS MALE 90 DEGREE ELBOW, NON SWIVEL, 3/8" TUBE X 1/4" MALE PIPE
X269PMTNSX6X4
- These are the quick disconnect version of nylon air brake (DOT) brass fittings.
- They are DOT approved and will be marked as such.
- Used with SAE J844 nylon tubing, no special tools required.
- There are no nuts or sleeves used in their application.
- 90° male elbow, non swivel
- Size 3/8" tubing o.d., 1/4" male pipe
$95.48
$19.096
$19.096
PUSH TO CONNECT, DOT BRASS MALE 90 DEGREE ELBOW, NON SWIVEL, 3/8" TUBE X 1/2" MALE PIPE
X269PMTNSX6X8
- These are the quick disconnect version of nylon air brake (DOT) brass fittings.
- They are DOT approved and will be marked as such.
- Used with SAE J844 nylon tubing, no special tools required.
- There are no nuts or sleeves used in their application.
- 90° male elbow, non swivel
- Size 3/8" tubing o.d., 1/2" male pipe
$119.494
$23.8988
$23.8988
PUSH TO CONNECT, DOT BRASS MALE 90 DEGREE ELBOW, NON SWIVEL, 1/2" TUBE X 1/4" MALE PIPE
X269PMTNSX8X4
- These are the quick disconnect version of nylon air brake (DOT) brass fittings.
- They are DOT approved and will be marked as such.
- Used with SAE J844 nylon tubing, no special tools required.
- There are no nuts or sleeves used in their application.
- 90° male elbow, non-swivel
$140.1565
$28.0313
$28.0313
PUSH TO CONNECT, DOT BRASS MALE 90 DEGREE ELBOW, NON SWIVEL, 1/2" TUBE X 3/8" MALE PIPE
X269PMTNSX8X6
- These are the quick disconnect version of nylon air brake (DOT) brass fittings.
- They are DOT approved and will be marked as such.
- Used with SAE J844 nylon tubing, no special tools required.
- There are no nuts or sleeves used in their application.
- 90° male elbow, non swivel
- Size 1/2" tubing o.d., 3/8" male pipe
$83.10
$16.62
$16.62
PUSH TO CONNECT, DOT BRASS MALE 90 DEGREE ELBOW, NON SWIVEL, 1/2" TUBE X 1/2" MALE PIPE
X269PMTNSX8X8
- These are the quick disconnect version of nylon air brake (DOT) brass fittings.
- They are DOT approved and will be marked as such.
- Used with SAE J844 nylon tubing, no special tools required.
- There are no nuts or sleeves used in their application.
- 90° male elbow, non swivel
- Size 1/2" tubing o.d., 1/2" male pipe
$102.5815
$20.5163
$20.5163
PUSH TO CONNECT, DOT BRASS MALE 90 DEGREE ELBOW, SWIVEL, 5/8" TUBE X 3/8" MALE PIPE
X269PMTX10X6
- These are the quick disconnect version of nylon air brake (DOT) brass fittings.
- They are DOT approved and will be marked as such.
- Used with SAE J844 nylon tubing, no special tools requir
- There are no nuts or sleeves used in their application.
- 90° male elbow, swivel
- 5/8" tube to 3/8" male pipe
$47.425
BRASS TRANSMISSION MALE ELBOW 1/8" TUBE X 1/8" PIPE
X269TFX2X2
- Transmission fitting
- These are typically used in pressure protected air transmission applications and air seats.
- The fittings use a notched sleeve to help eliminate stress from over-torque.
- These fittings are used with smaller nylon tubing, usually 1/8" and 5/32".
- These are DOT approved.
- Easy to assemble, no flaring required.
- 90° male elbow
- Size 1/8" tubing o.d., 1/8" male pipe
$51.075
$10.215
$10.215
BRASS TRANSMISSION MALE ELBOW 5/32" TUBE X 1/8" PIPE
X269TFX532X2
- Transmission fitting
- These are typically used in pressure protected air transmission applications and air seats.
- The fittings use a notched sleeve to help eliminate stress from over-torque.
- These fittings are used with smaller nylon tubing, usually 1/8" and 5/32".
- These are DOT approved.
- Easy to assemble, no flaring required.
- 90° male elbow
- Size 5/32" tubing o.d., 1/8" male pipe
$146.3625
$29.2725
$29.2725
BRASS UNION INVERTED FLARE 3/16"
X302X3
- Inverted flare fitting
- Manufactured from either CA360 or CA345 brass.
- Used with copper, brass, aluminum and steel hydraulic tubing.
- The seat on this style of fitting is inverted to resist mechanical pullout.
- The tube end will have an inverted cone on the inside.
- Union connector
- Size 3/16" tubing o.d.
$23.40
$4.68
$4.68
HOSE FITTING MALE PIPE RIGID 3/8 TUBE 1/4" MALE PIPE
X30182-4-6B
- Material: Brass
- 1-piece, field attachable, reusable, push-on style fitting which permits quick, easy field assembly without special tools.
- Do not require the use of clamps.
- Used with 801, 804, 821, 821FR, 831 and 836 hoses.
$6.127
