Ram Products | Switches

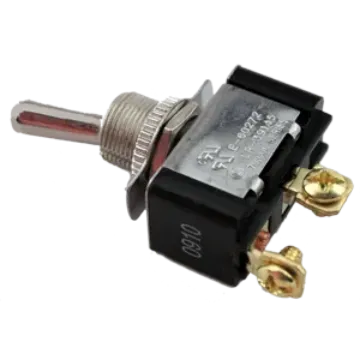

TOGGLE SWITCH - ON/OFF 2 SCREWS, SPST

TS571

Heavy duty toggle switches.
Ideal for industrial controls, marine panels, trucks, buses and automotive applications.
The frame and supports are made from zinc plated steel.
Has a black phenolic base.
Recommended mounting hole is .500" diameter.
Circuitry: On-Off
Single pole, single throw.
Ratings: 20 amps @ 125VAC and 21 amps @ 14VDC.
Two screw terminals.

$38.25
$7.65

+ -

TOGGLE SWITCH - ON/OFF 2 BLADES, SPST

TS571Q

Heavy duty toggle switches.
Ideal for industrial controls, marine panels, trucks, buses and automotive applications.
The frame and supports are made from zinc plated steel.
Has a black phenolic base.
Recommended mounting hole is .500" diameter.
Circuitry: On-Off
Single pole, double throw.
Ratings: 20 amps @ 125VAC and 21 amps @ 14VDC.
Two 1/4" blade terminals.

$40.70
$8.14

+ -

TOGGLE SWITCH - ON/OFF/ON 3 SCREWS, SPDT

TS573

Heavy duty toggle switches.
Ideal for industrial controls, marine panels, trucks, buses and automotive applications.
The frame and supports are made from zinc plated steel.
Has a black phenolic base.
Recommended mounting hole is .500" diameter.
Circuitry: On-Off-On
Single pole, double throw.
Ratings: 20 amps @ 125VAC and 21 amps @ 14VDC.
Three screw terminals.

$45.50
$9.10

+ -

TOGGLE SWITCH - ON/ON 3 SCREWS, SPDT

TS572

Heavy duty toggle switches.
Ideal for industrial controls, marine panels, trucks, buses and automotive applications.
The frame and supports are made from zinc plated steel.
Has a black phenolic base.
Recommended mounting hole is .500" diameter.
Circuitry: On-On
Single pole, double throw.
Ratings: 20 amps @ 125VAC and 21 amps @ 14VDC.
Three screw terminals.

$45.50
$9.10

+ -

TOGGLE SWITCH SAFETY COVER RED - ON/OFF SWTICHES

TSC1

Standard handle, toggle switch safety cover.
Prevents accidental actuation.
Spring loaded design with a steel faceplate and plastic cover.
For use with on-off toggle switches.
Red in color.

$9.945

+ -

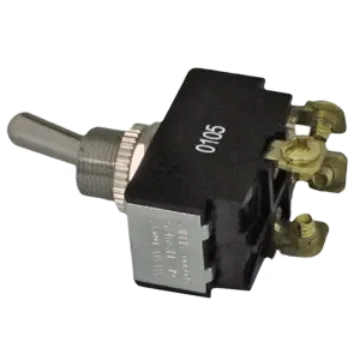

TOGGLE SWITCH - ON/OFF 4 SCREWS, DPST

TS574

Heavy duty toggle switches.
Ideal for industrial controls, marine panels, trucks, buses and automotive applications.
The frame and supports are made from zinc plated steel.
Has a black phenolic base.
Recommended mounting hole is .500" diameter.
Circuitry: On-Off
Single pole, double throw.
Ratings: 20 amps @ 125VAC and 21 amps @ 14VDC.
Four screw terminals.

$46.58
$9.315

+ -

TOGGLE SWITCH BOOT - SILICONE 15/32 THREADS SHORT HANDLE

TSB

Short handle, toggle switch boot.
15/32 threads.
Tough rubber silicone covers are UV-resistant.
Protect switches from moisture, dust and dirt.
Screws onto most toggle switches.
Rated at -40°F to 356°F.

$23.10
$4.62

+ -

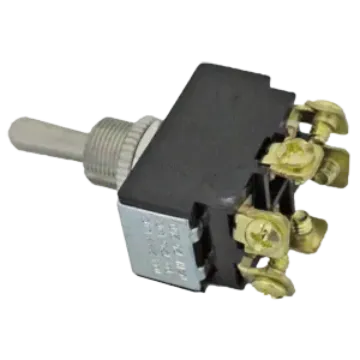

TOGGLE SWITCH - ON/OFF/ON 6 SCREWS DPDT

TS577

Heavy duty toggle switches.
Ideal for industrial controls, marine panels, trucks, buses and automotive applications.
The frame and supports are made from zinc plated steel.
Has a black phenolic base.
Recommended mounting hole is .500" diameter.
Circuitry: On-Off-On
Single pole, double throw.
Ratings: 20 amps @ 125VAC and 21 amps @ 14VDC.
Six screw terminals.

$62.33
$12.465

+ -

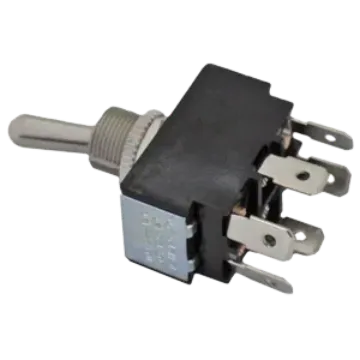

TOGGLE SWITCH - ON/ON 6 BLADES, DPDT

TS576Q

Heavy duty toggle switches.
Ideal for industrial controls, marine panels, trucks, buses and automotive applications.
The frame and supports are made from zinc plated steel.
Has a black phenolic base.
Recommended mounting hole is .500" diameter.
Circuitry: On-On
Single pole, double throw.
Ratings: 20 amps @ 125VAC and 21 amps @ 14VDC.
Six 1/4" blade terminals.

$58.95
$11.79

+ -

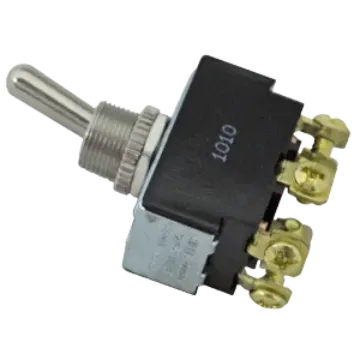

TOGGLE SWITCH - ON/ON 6 SCREWS, DPDT

TS576

Heavy duty toggle switches.
Ideal for industrial controls, marine panels, trucks, buses and automotive applications.
The frame and supports are made from zinc plated steel.
Has a black phenolic base.
Recommended mounting hole is .500" diameter.
Circuitry: On-On
Single pole, double throw.
Ratings: 20 amps @ 125VAC and 21 amps @ 14VDC.
Six screw terminals.

$65.03
$13.005

+ -

TOGGLE SWITCH-M(ON)-OFF-M(ON) 3 SCREWS SPDT

TS575

Heavy duty toggle switches.
Ideal for industrial controls, marine panels, trucks, buses and automotive applications.
The frame and supports are made from zinc plated steel.
Has a black phenolic base.
Recommended mounting hole is .500" diameter.
Circuitry: MOMENTARY ON-OFF-MOMENTARY ON
Single pole, double throw.
Ratings: 20 amps @ 125VAC and 21 amps @ 14VDC.
Three screw terminals.

$48.75
$9.75

+ -

TOGGLE SWITCH - ON/OFF 4 BLADES, DPST

TS574Q

Heavy duty toggle switches.
Ideal for industrial controls, marine panels, trucks, buses and automotive applications.
The frame and supports are made from zinc plated steel.
Has a black phenolic base.
Recommended mounting hole is .500" diameter.
Circuitry: Momentary On-Off-Momentary On
Single pole, double throw.
Ratings: 20 amps @ 125VAC and 21 amps @ 14VDC.
Four 1/4" blade terminals.

$45.90
$9.18

+ -

TOGGLE SWITCH BOOT - SILICONE 15/32 THREADS SHORT HANDLE 100/BAG

TSB-100

Short handle, toggle switch boot.
15/32 threads.
Tough rubber silicone covers are UV-resistant.
Protect switches from moisture, dust and dirt.
Screws onto most toggle switches.
Rated at -40°F to 356°F.

$462.00
$4.62

+ -

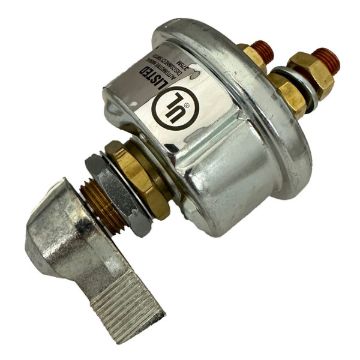

SINGLE POLE BATTERY SWITCH 6-36 VOLTS DC, 175 AMPS CONTINUOUS, SILVER CONTACTS

XCH2484

Battery master disconnect switch.
Two positions: Off-On
For 6-36 volt DC systems.
Will disconnect the battery circuit only.
Electrical rating of 1000 Amps intermittent, 175 amps continuous.
Copper contacts.

$79.17

+ -

TOGGLE SWITCH, ON/OFF, SPST, 2 SCREWS

XCH5520

Heavy duty toggle switches.
Ideal for industrial controls, marine panels, trucks, buses and automotive applications.
Standard bat handle.
Mounting stem is 15/32" threads.
Recommended mounting hole is .500" diameter.
Circuitry: On-Off 2 screw terminals, o ring seal
Single pole, double throw.
Ratings: 20 amps @ 125VAC and 21 amps @ 14VDC.
Two screw terminals.

$19.08

+ -

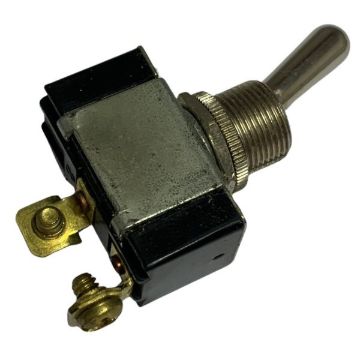

TOGGLE SWITCH, ON/OFF, SPST, 2 SCREWS

XCH5582

Heavy duty toggle switches.
Ideal for industrial controls, marine panels, trucks, buses and automotive applications.
Standard bat handle.
Mounting stem is 15/32" threads.
Recommended mounting hole is .500" diameter.
Circuitry: On-Off 2 screw terminals.
Single pole, double throw.
Ratings: 20 amps @ 125VAC and 21 amps @ 14VDC.
Two screw te\rminals.

$22.5375

+ -

TOGGLE SWITCH, ON/OFF, SPST, 2 WIRES, PVC COATED

XCH5582-10

Heavy duty toggle switches.
Ideal for industrial controls, marine panels, trucks, buses and automotive applications.
Standard bat handle.
Mounting stem is 11/32" threads.
O ring seal.
Circuitry: On-Off.
Single pole, double throw.
Ratings: 20 amps @ 125VAC and 21 amps @ 14VDC.
Two 8" wire leads.
Switch is PVC coated.

$51.4738

+ -

TOGGLE SWITCH, ON/OFF/ON, SPDT, 3 SCREWS

XCH5586

$140.85
$23.475

+ -

PUSH-PULL SWITCH, OFF/ON, TWO 12" WIRES, 6-36 VOLTS DC

XCHM-606

Brass housing, plasticized.
Two insulated copper wire leads, 12" long.
Chrome-plated brass knob.
10-32 thread.

$69.125

+ -

TOGGLE SWITCH ON-OFF-ON LIGHTED PADDLE 15A

XCLT-1561-111-012

Clear nylon lighted
SPDT
On-off-on
Five, 1/4" blade terminals
Amp rating: 10 amps @ 250VAC, 15 amps @ 125VAC

$48.16

+ -

TOGGLE SWITCH

XG17146--1E

Medium duty toggle switch.
Standard bat handle.
Single pole, single throw.
Circuitry: On-Off
6" wire leads.
Recommended mounting hole of 1/2".
Ratings: 4 amps @ 250 volts, 8 amps at 125 volts, 21 amps at 14 volts DC.

$485.00
$9.70

+ -

CARLING CONTURA SWITCH BODY (ON)-OFF-(ON) UNLIT

XVDD1S00B

Rocker Switch
Double Pole Double Throw
20 amp
12VDC
Easy installation: actuators snap onto switch body
6 Contacts

$194.14
$19.4138

+ -

CARLING MOUNTING PANEL END

XVME-01

Mounting Bracket end
Dimensions: 1.19" W x 2.30" H
End unit reverses to fit either side of the middle unit
For use with the Contura Rocker Switches

$53.98
$5.3976

+ -

CARLING SINGLE MOUNTING PANEL

XVMM-01

Mounting Bracket Center
Dimensions: 1.34" W x 2.03" H
Mounting hole: 1.03" W x 1.97" H
For use with the Contura Rocker Switches
Used where multiple switches can be installed with only one hold to cut in your panel
Black

$57.27
$5.727

+ -
