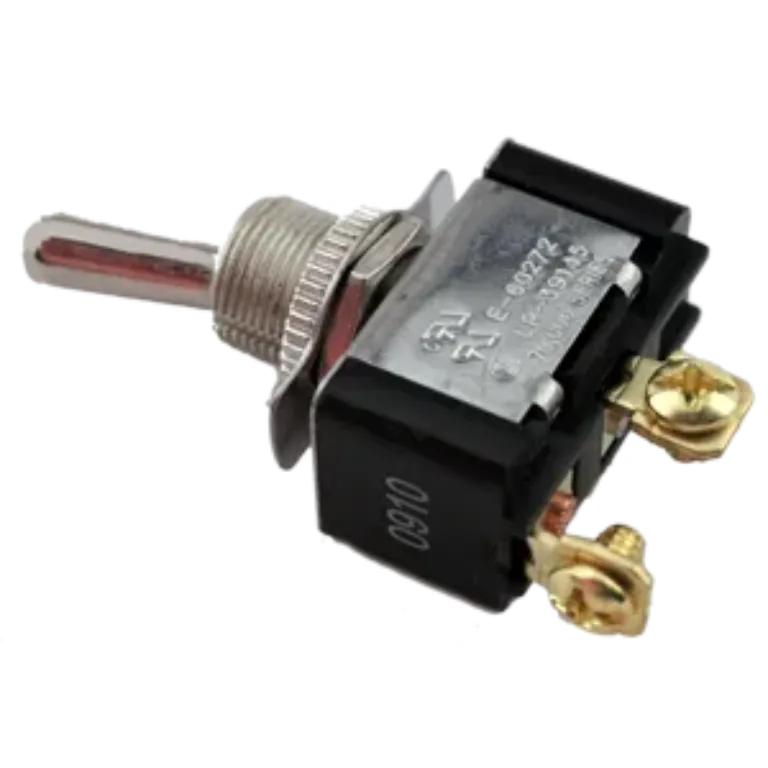

TOGGLE SWITCH - ON/OFF 2 SCREWS, SPST

  • Heavy duty toggle switches.
  • Ideal for industrial controls, marine panels, trucks, buses and automotive applications.
  • The frame and supports are made from zinc plated steel.
  • Has a black phenolic base.
  • Recommended mounting hole is .500" diameter.
  • Circuitry: On-Off
  • Single pole, single throw.
  • Ratings: 20 amps @ 125VAC and 21 amps @ 14VDC.
  • Two screw terminals.
    Part #: TS571
    Availability:
    In Stock
    Price: $38.25
    $7.65
    i h h
    The TOGGLE SWITCH - ON/OFF 2 SCREWS, SPST (SKU: TS571) is a robust solution for industrial control systems. Designed with a durable toggle actuator, this switch offers reliable on/off functionality. Featuring two screws for secure mounting, it ensures a stable connection in demanding environments. Ideal for various applications, this heavy-duty switch provides the performance needed for consistent operation in industrial settings.
    Products specifications
    Screws 2, 2
    Designation SPST, SPST
    Actuator Style Toggle, Toggle
