Brass Fittings

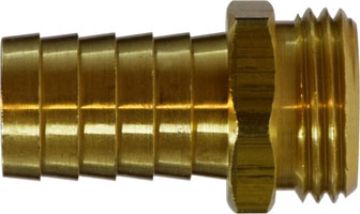

GARDEN HOSE, BRASS, 3/8" X 3/4" HOSE BARB X MALE GARDEN HOSE ADAPTER
X53GH-6-12
- All brass construction
- 3/4" garden hose threads
- Rubber washer
- High flow couplings
- Pressure rated up to 150 psi
$10.3365

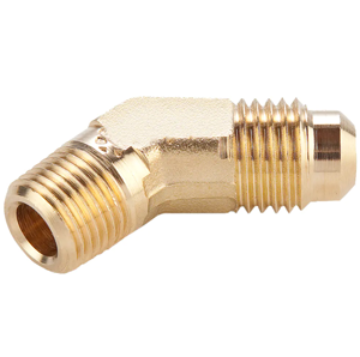

SAE 45 DEGREE FLARE, 45 DEGREE MALE CONNECTOR 3/8" TUBE X 1/4" MALE PIPE
X54X6
- SAE 45 Degree Flare
- Manufactured from either CA360, CA345 or CA377 brass.
- Meets functional requirements of SAE J512 and J513.
- Used with copper, brass, aluminum and steel hydraulic tubing.
- The tubing is flared on one end to accept the brass fitting.
- This type of fitting has the cone shape on the straight thread end.
- This fitting is used with LP and natural gas, instrumentation, power steering, hydraulic and pneumatic systems.
- 45° male elbow
- Size 3/8" tube, 1/4" male pipe
$85.20
$17.04
$17.04
BRASS COMPRESSION SLEEVE 3/16"
X60X3
- Compression brass fitting
- Meets functional requirements of SAE J512.
- No flaring, soldering or other preparation of tubing necessary to assemble.
- It is used with aluminum, copper and plastic tubing.
- Not recommended for use with steel tubing.
- Compression sleeve
- Size 3/16" tubing o.d.
$18.00
$0.72
$0.72
BRASS COMPRESSION SLEEVE 5/16"
X60X5
- Compression brass fitting
- Meets functional requirements of SAE J512.
- No flaring, soldering or other preparation of tubing necessary to assemble.
- It is used with aluminum, copper and plastic tubing.
- Not recommended for use with steel tubing.
- Compression sleeve
- Size 5/16" tubing o.d.
$21.70
$0.868
$0.868
BRASS COMPRESSION SLEEVE 1/2"
X60X8
- Compression brass fitting
- Meets functional requirements of SAE J512.
- No flaring, soldering or other preparation of tubing necessary to assemble.
- It is used with aluminum, copper and plastic tubing.
- Not recommended for use with steel tubing.
- Compression sleeve
- Size 1/2" tubing o.d.
$21.84
$2.184
$2.184
BRASS COMPRESSION NUT 3/16"
X61X3
- Compression brass fitting
- Meets functional requirements of SAE J512.
- No flaring, soldering or other preparation of tubing necessary to assemble.
- It is used with aluminum, copper and plastic tubing.
- Not recommended for use with steel tubing.
- Brass compression nut
- Size 3/16" tubing o.d.
$16.12
$1.612
$1.612

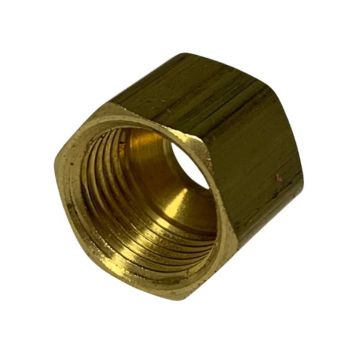

BRASS COMPRESSION NUT 5/16"
X61X5
- Compression brass fitting
- Meets functional requirements of SAE J512.
- No flaring, soldering or other preparation of tubing necessary to assemble.
- It is used with aluminum, copper and plastic tubing.
- Not recommended for use with steel tubing.
- Brass compression nut
- Size 5/16" tubing o.d.
$25.935
$2.5935
$2.5935
BRASS COMPRESSION UNION 1/8"
X62X2
- Compression brass fitting
- Meets functional requirements of SAE J512.
- No flaring, soldering or other preparation of tubing necessary to assemble.
- It is used with aluminum, copper and plastic tubing.
- Not recommended for use with steel tubing.
- Union connector
- Size 1/8" tubing o.d.
$38.3955
$7.6791
$7.6791
BRASS COMPRESSION UNION 1/2"
X62X8
- Compression brass fitting
- Meets functional requirements of SAE J512.
- No flaring, soldering or other preparation of tubing necessary to assemble.
- It is used with aluminum, copper and plastic tubing.
- Not recommended for use with steel tubing.
- Union connector
- Size 1/2" tubing o.d.
$64.265
$12.853
$12.853
BRASS COMPRESSION UNION 3/8"
X62X6
- Compression brass fitting
- Meets functional requirements of SAE J512.
- No flaring, soldering or other preparation of tubing necessary to assemble.
- It is used with aluminum, copper and plastic tubing.
- Not recommended for use with steel tubing.
- Union connector
- Size 3/8" tubing o.d.
$43.40
$8.68
$8.68
BRASS COMPRESSION UNION 3/16"
X62X3
- Compression brass fitting
- Meets functional requirements of SAE J512.
- No flaring, soldering or other preparation of tubing necessary to assemble.
- It is used with aluminum, copper and plastic tubing.
- Not recommended for use with steel tubing.
- Union connector
- Size 3/16" tubing o.d.
$62.325
$12.465
$12.465
PUSH TO CONNECT, COMPOSITE PLUG, 1/4" TUBE SIZE
X639PMTX4
- They are DOT approved and will be marked as such.
- Used with SAE J844 nylon tubing, no special tools required.
- There are no nuts or sleeves used in their application.
- Size 1/4" tubing o.d.
$5.964
PUSH TO CONNECT, BRASS DOT, FEMALE CONNECTOR, 1/4" TUBE X 1/8" FEMALE PIPE
X66PMTX4X2
- They are DOT approved and will be marked as such.
- Used with SAE J844 nylon tubing, no special tools required.
- There are no nuts or sleeves used in their application.
- Size 1/4" tubing o.d., 1/8" male pipe
$17.448
NON-DOT, NICKEL PLATED BRASS, MALE CONNECTOR, 1/4" TUBE X 1/4" MALE PIPE
X68PLMX4X4
- These are used with industrial fluids.
- Used Polyethylene, Polyurethane, or nylon tubing, no special tools required.
- There are no nuts or sleeves used in their application.
- Size 1/4" tubing o.d., 1/4" male pipe
$15.164
PUSH TO CONNECT, BRASS DOT, MALE CONNECTOR, 5/8" TUBE X 3/8" MALE PIPE
X68PMTX10X6
- They are DOT approved and will be marked as such.
- Used with SAE J844 nylon tubing, no special tools required.
- There are no nuts or sleeves used in their application.
- Size 5/8" tubing o.d., 3/8" male pipe
$191.04
$19.104
$19.104
PUSH TO CONNECT, BRASS DOT, MALE CONNECTOR, 5/8" TUBE X 1/2" MALE PIPE
X68PMTX10X8
- They are DOT approved and will be marked as such.
- Used with SAE J844 nylon tubing, no special tools required.
- There are no nuts or sleeves used in their application.
- Size 5/8" tubing o.d., 1/2" male pipe
$174.225
$34.845
$34.845
PUSH TO CONNECT, BRASS DOT, BULKHEAD MALE CONNECTOR, 1/4" TUBE X 1/2" MALE PIPE
X68PMTX4X8
- They are DOT approved and will be marked as such.
- Used with SAE J844 nylon tubing, no special tools required.
- There are no nuts or sleeves used in their application.
- Size 1/4" tubing o.d., 1/2" male pipe
$256.165
$51.233
$51.233
PUSH TO CONNECT, BRASS DOT, MALE CONNECTOR, 3/8" TUBE X 1/2" MALE PIPE
X68PMTX6X8
- These are the quick disconnect version of nylon air brake (DOT) brass fittings.
- They are DOT approved and will be marked as such.
- Used with SAE J844 nylon tubing, no special tools required.
- There are no nuts or sleeves used in their application.
- Size 3/8" tubing o.d., 1/2" male pipe
$94.88
$18.976
$18.976
PUSH TO CONNECT, BRASS NON-DOT , MALE CONNECTOR, 3/16" TUBE X 1/16" MALE PIPE
X68PMX3X1
$203.735
$40.747
$40.747
BRASS TRANSMISSION MALE CONNECTOR 1/8 TUBE X 1/16" PIPE
X68TFX2X1
- Transmission fitting
- These are typically used in pressure protected air transmission applications and air seats.
- The fittings use a notched sleeve to help eliminate stress from over-torque.
- These fittings are used with smaller nylon tubing, usually 1/8" and 5/32".
- These are DOT approved.
- Easy to assemble, no flaring required.
- Size 1/8" tubing o.d., 1/16" male pipe
$49.50
$9.90
$9.90
