Washers

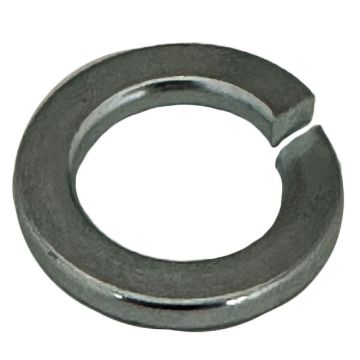

LOCK WASHER SPLIT METRIC ZINC M7
LW7M
- A coiled, hardened split circular washer with a slightly trapezoidal wire section.
- Applies greater bolt tension per unit of applied torque.
- Provides a hardened bearing surface and more uniform load distribution.
- Steel, zinc plated.
- Resists loosening caused by vibration and corrosion.
- For use with metric bolts and screws.
- Rockwell Hardness: C44-51
- Inside Diameter: Min 7.1 Max 7.5
- Outside Diameter: 12.8
$19.50
$0.195
$0.195

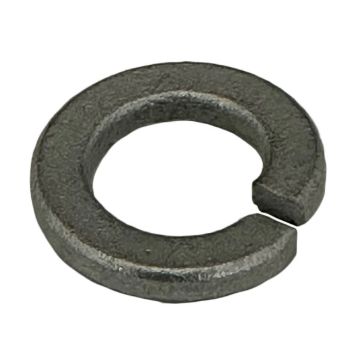

LOCK WASHER SPLIT USS ZINC #8 GR 5
LW8
- A coiled, hardened split circular washer with a slightly trapezoidal wire section.
- Applies greater bolt tension per unit of applied torque.
- Provides a hardened bearing surface and more uniform load distribution.
- Steel, zinc plated.
- Resists loosening caused by vibration and corrosion.
- Designed for use with grade 5 bolts.
- Rockwell Hardness: C38-46
- Inside Diameter: Min .167 Max .174
- Outside Diameter: 0.293
$6.00
$0.06
$0.06
LOCK WASHER SPLIT METRIC ZINC M8
LW8M
- A coiled, hardened split circular washer with a slightly trapezoidal wire section.
- Applies greater bolt tension per unit of applied torque.
- Provides a hardened bearing surface and more uniform load distribution.
- Steel, zinc plated.
- Resists loosening caused by vibration and corrosion.
- For use with metric bolts and screws.
- Rockwell Hardness: C44-51
- Inside Diameter: Min 8.1 Max 8.5
- Outside Diameter: 14.8
$15.00
$0.15
$0.15

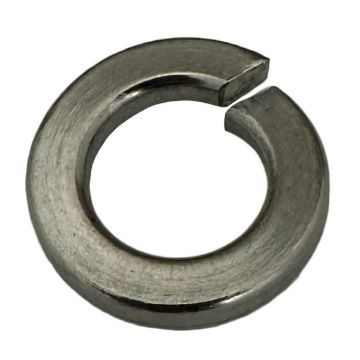

LOCK WASHER SPLIT STAINLESS #8"
LW8SS
- A coiled, hardened split circular washer with a slightly trapezoidal wire section.
- Applies greater bolt tension per unit of applied torque.
- Provides a hardened bearing surface and more uniform load distribution.
- Stainless Steel.
- Resists loosening caused by vibration and corrosion.
- For use with stainless nuts and screws of a similar stainless alloy.
- Rockwell Hardness: C35-43
- Inside Diameter: Min .167 Max .174
- Outside Diameter: 0.293
$8.20
$0.082
$0.082
LOCK WASHER SPLIT USS ZINC 9/16" GR 5
LW96
- A coiled, hardened split circular washer with a slightly trapezoidal wire section.
- Applies greater bolt tension per unit of applied torque.
- Provides a hardened bearing surface and more uniform load distribution.
- Steel, zinc plated.
- Resists loosening caused by vibration and corrosion.
- Designed for use with grade 5 bolts.
- Rockwell Hardness: C38-46
- Inside Diameter: Min .564 Max .574
- Outside Diameter: 0.965
$28.44
$0.5688
$0.5688
FENDER WASHER USS ZINC 5/16" X 1-1/2"
56X112FW
- A flat washer with more surface area than a USS or SAE washer.
- Made from thinner gauge metal than most flat washers.
- Used where an extra wide bearing surface is required.
- Originally designed for auto body repair, they are also used in sheet metal, plumbing, and electrical work.
- Made of zinc plated steel.
- Inside Diameter: 5/16"
- Outside Diameter: 1-1/2"
$46.40
$0.464
$0.464
FENDER WASHER ZINC HEAVY DUTY 5/16" X 1-1/2"
56X112FWHD
- A flat washer with more surface area than a USS or SAE washer.
- Made from heavier gauge metal than most flat washers.
- Used where an extra wide bearing surface is required.
- Originally designed for auto body repair, they are also used in sheet metal, plumbing, and electrical work.
- Made of zinc plated steel.
- Inside Diameter: 5/16"
- Outside Diameter: 1-1/2"
$164.52
$1.6452
$1.6452
FENDER WASHER USS ZINC 5/16" X 1-1/4"
56X114FW
- A flat washer with more surface area than a USS or SAE washer.
- Made from thinner gauge metal than most flat washers.
- Used where an extra wide bearing surface is required.
- Originally designed for auto body repair, they are also used in sheet metal, plumbing, and electrical work.
- Made of zinc plated steel.
- Inside Diameter: 5/16"
- Outside Diameter: 1-1/4"
$38.39
$0.3839
$0.3839
FLAT WASHER USS ZINC 1" THRU HARDENED
8FW1
- Used to improve stress distribution, and to span large holes.
- USS PATTERN.
- Made from heat treated thru-hardened steel, zinc yellow.
- Outside Diameter: 2-1/2"
- Inside Diameter: 1-1/16"
$48.10
$1.924
$1.924
FLAT WASHER USS ZINC 1/4" THRU HARDENED
8FW14
- Used to improve stress distribution, and to span large holes.
- USS PATTERN.
- Made from heat treated thru-hardened steel, zinc yellow.
- Outside Diameter: 3/4"
- Inside Diameter: 5/16"
$23.55
$0.2355
$0.2355
FLAT WASHER USS ZINC 3/4" THRU HARDENED
8FW34
- Used to improve stress distribution, and to span large holes.
- USS PATTERN.
- Made from heat treated thru-hardened steel, zinc yellow.
- Outside Diameter: 2"
- Inside Diameter: 13/16"
$24.01
$0.9604
$0.9604
FLAT WASHER USS ZINC 1/2" THRU HARDENED
8FW50
- Used to improve stress distribution, and to span large holes.
- USS PATTERN.
- Made from heat treated thru-hardened steel, zinc yellow.
- Outside Diameter: 1-3/8"
- Inside Diameter: 9/16"
$44.50
$0.445
$0.445
FLAT WASHER USS ZINC 3/8" THRU HARDENED
8FW38
- Used to improve stress distribution, and to span large holes.
- USS PATTERN.
- Made from heat treated thru-hardened steel, zinc yellow.
- Outside Diameter: 1"
- Inside Diameter: 7/16"
$33.84
$0.3384
$0.3384
FLAT WASHER USS ZINC 5/16" THRU HARDENED
8FW56
- Used to improve stress distribution, and to span large holes.
- USS PATTERN.
- Made from heat treated thru-hardened steel, zinc yellow.
- Outside Diameter: 7/8"
- Inside Diameter: 3/8"
$26.28
$0.2628
$0.2628
FLAT WASHER USS ZINC 5/8" THRU HARDENED
8FW58
- Used to improve stress distribution, and to span large holes.
- USS PATTERN.
- Made from heat treated thru-hardened steel, zinc yellow.
- Outside Diameter: 1-3/4"
- Inside Diameter: 11/16"
$35.175
$0.7035
$0.7035
FLAT WASHER USS ZINC 7/16" THRU HARDENED
8FW76
- Used to improve stress distribution, and to span large holes.
- USS PATTERN.
- Made from heat treated thru-hardened steel, zinc yellow.
- Outside Diameter: 1-1/4"
- Inside Diameter: 1/2"
$44.00
$0.44
$0.44
FLAT WASHER USS ZINC YELLOW 7/8" THRU HARDENED
8FW78
- Used to improve stress distribution, and to span large holes.
- USS PATTERN.
- Made from heat treated thru-hardened steel, zinc yellow.
- Outside Diameter: 2-1/4"
- Inside Diameter: 15/16"
$42.64
$1.7056
$1.7056
FLAT WASHER USS ZINC 9/16" THRU HARDENED
8FW96
- Used to improve stress distribution, and to span large holes.
- USS PATTERN.
- Made from heat treated thru-hardened steel, zinc yellow.
- Outside Diameter: 1-1/2"
- Inside Diameter: 5/8"
$32.12
$0.6424
$0.6424
LOCK WASHER SPLIT USS ZINC 1" HIGH ALLOY
8LW1
- A coiled, hardened split circular washer with a slightly trapezoidal wire section.
- Applies greater bolt tension per unit of applied torque.
- Provides a hardened bearing surface and more uniform load distribution.
- Steel, yellow zinc plated.
- Resists loosening caused by vibration and corrosion.
- For use with grade 8 bolts.
- Rockwell Hardness: C38-46
- Inside Diameter: Min 1.003 Max 1.024
- Outside Diameter: 1.656
$76.245
$3.0498
$3.0498
LOCK WASHER SPLIT USS ZINC 1/4" HIGH ALLOY
8LW14
- A coiled, hardened split circular washer with a slightly trapezoidal wire section.
- Applies greater bolt tension per unit of applied torque.
- Provides a hardened bearing surface and more uniform load distribution.
- Steel, yellow zinc plated.
- Resists loosening caused by vibration and corrosion.
- For use with grade 8 bolts.
- Rockwell Hardness: C38-46
- Inside Diameter: Min .252 Max .260
- Outside Diameter: 0.487
$25.20
$0.252
$0.252
LOCK WASHER SPLIT USS ZINC 1/4" HIGH ALLOY 1000/BAG
8LW14-M
- A coiled, hardened split circular washer with a slightly trapezoidal wire section.
- Applies greater bolt tension per unit of applied torque.
- Provides a hardened bearing surface and more uniform load distribution.
- Steel, yellow zinc plated.
- Resists loosening caused by vibration and corrosion.
- For use with grade 8 bolts.
- Rockwell Hardness: C38-46
- Inside Diameter: Min .252 Max .260
- Outside Diameter: 0.487
$252.00
$0.252
$0.252
LOCK WASHER SPLIT USS ZINC 3/4" HIGH ALLOY
8LW34
- A coiled, hardened split circular washer with a slightly trapezoidal wire section.
- Applies greater bolt tension per unit of applied torque.
- Provides a hardened bearing surface and more uniform load distribution.
- Steel, yellow zinc plated.
- Resists loosening caused by vibration and corrosion.
- For use with grade 8 bolts.
- Rockwell Hardness: C38-46
- Inside Diameter: Min .753 Max .766
- Outside Diameter: 1.265
$17.74
$0.7096
$0.7096
LOCK WASHER SPLIT USS ZINC 3/8" HIGH ALLOY
8LW38
- A coiled, hardened split circular washer with a slightly trapezoidal wire section.
- Applies greater bolt tension per unit of applied torque.
- Provides a hardened bearing surface and more uniform load distribution.
- Steel, yellow zinc plated.
- Resists loosening caused by vibration and corrosion.
- For use with grade 8 bolts.
- Rockwell Hardness: C38-46
- Inside Diameter: Min .377 Max .385
- Outside Diameter: 0.68
$22.95
$0.2295
$0.2295
LOCK WASHER SPLIT USS ZINC 1/2" HIGH ALLOY
8LW50
- A coiled, hardened split circular washer with a slightly trapezoidal wire section.
- Applies greater bolt tension per unit of applied torque.
- Provides a hardened bearing surface and more uniform load distribution.
- Steel, yellow zinc plated.
- Resists loosening caused by vibration and corrosion.
- For use with grade 8 bolts.
- Rockwell Hardness: C38-46
- Inside Diameter: Min .502 Max .512
- Outside Diameter: 0.869
$35.28
$0.3528
$0.3528
LOCK WASHER SPLIT USS ZINC 5/16" HIGH ALLOY
8LW56
- A coiled, hardened split circular washer with a slightly trapezoidal wire section.
- Applies greater bolt tension per unit of applied torque.
- Provides a hardened bearing surface and more uniform load distribution.
- Steel, yellow zinc plated.
- Resists loosening caused by vibration and corrosion.
- For use with grade 8 bolts.
- Rockwell Hardness: C38-46
- Inside Diameter: Min .314 Max .322
- Outside Diameter: 0.583
$33.00
$0.33
$0.33
