Screws
MACHINE SCREW PHIL PAN HD #10-32 X 3/4" STAINLESS
X1032X34PSS
- A straight shank fastener with external threads designed to go through a hole or nut that is pre-tapped to form a mating thread for the screw.
- Machine screws form a fastening superior in strength to spaced thread screws.
- Stainless steel machine screws are used in applications which require general atmospheric corrosion resistance.
- Used in food processing machinery and refrigeration equipment.
- Stainless is also superior to steel in withstanding some elevation in application operating temperature while maintaining its strength.
- Made from 18-8 stainless
- Pan head Phillips.
- 10-32 diameter.
- Length of 3/4".
$36.19
$0.3619
$0.3619
MACHINE SCREW PHIL TRUSS HD #10-32 X 3/4" STAINLESS
X1032X34THPS
- Machine Screw
- Phillips Drive
- Truss Head
- 18-8 Stainless Steel
- #10-32 X 3/4"
$41.76
$0.4176
$0.4176
MACHINE SCREW PHIL PAN HD #10-32 X 3/8" STAINLESS
X1032X38PSS
- A straight shank fastener with external threads designed to go through a hole or nut that is pre-tapped to form a mating thread for the screw.
- Machine screws form a fastening superior in strength to spaced thread screws.
- Stainless steel machine screws are used in applications which require general atmospheric corrosion resistance.
- Used in food processing machinery and refrigeration equipment.
- Stainless is also superior to steel in withstanding some elevation in application operating temperature while maintaining its strength.
- Made from 18-8 stainless
- Pan head Phillips.
- 10-32 diameter.
- Length of 3/8".
$34.56
$0.3456
$0.3456
HEX LAG SCREW ZINC 3/8" X 1-1/2"
X38X112LS
- A full-bodied bolt with a hex head, spaced threads and a gimlet point.
- For use in wood in non-corosive environments.
- Tensile strength 60,000 psi minimum
$43.085
$0.8617
$0.8617
U DRIVE ROUND HEAD #4 X 1/4"
X4X14UD
- For making permanent fastenings in metals and plastics., when forced into the work under pressure.
- Steel.
- Nominal screw size #4.
- Length 1/4".
$35.40
$0.354
$0.354
SHEET METAL SCREW HEX WASH HD #20 X 1-1/2"
20X112H
- A thread forming tapping screw with spaced threads and a gimlet point.
- For self starting in thin metal or resin-filled plywood.
- Has an indented top surface, six flat sides with a flat washer which projects beyond the sides and provides a flat bearing surface.
- The washer and head are formed together as one piece. (Hex washer head)
- Increased bearing area reduces likelihood of crushing mating surfaces.
- Zinc plated steel.
- Screw diameter 5/16
- Screw length 1-1/2 inches
$85.47
$0.8547
$0.8547
SHEET METAL SCREW HEX WASH HD #20 X 1-1/4"
20X114H
- A thread forming tapping screw with spaced threads and a gimlet point.
- For self starting in thin metal or resin-filled plywood.
- Has an indented top surface, six flat sides with a flat washer which projects beyond the sides and provides a flat bearing surface.
- The washer and head are formed together as one piece. (Hex washer head)
- Increased bearing area reduces likelihood of crushing mating surfaces.
- Zinc plated steel.
- Screw diameter 5/16
- Screw length 1-1/4 inches
$70.49
$0.7049
$0.7049
SHEET METAL SCREW HEX WASH HD #20 X 1"
20X1H
- A thread forming tapping screw with spaced threads and a gimlet point.
- For self starting in thin metal or resin-filled plywood.
- Has an indented top surface, six flat sides with a flat washer which projects beyond the sides and provides a flat bearing surface.
- The washer and head are formed together as one piece. (Hex washer head)
- Increased bearing area reduces likelihood of crushing mating surfaces.
- Zinc plated steel.
- Screw diameter 5/16
- Screw length 1 inch
$57.28
$0.5728
$0.5728
SHEET METAL SCREW HEX WASH HD #20 X 3/4'
20X34H
- A thread forming tapping screw with spaced threads and a gimlet point.
- For self starting in thin metal or resin-filled plywood.
- Has an indented top surface, six flat sides with a flat washer which projects beyond the sides and provides a flat bearing surface.
- The washer and head are formed together as one piece. (Hex washer slotted head)
- Increased bearing area reduces likelihood of crushing mating surfaces.
- Zinc plated steel.
- Screw diameter 5/16
- Screw length 3/4 inch
$43.10
$0.431
$0.431
SHEET METAL SCREW HEX WASH HD #20 X 2"
20X2H
- A thread forming tapping screw with spaced threads and a gimlet point.
- For self starting in thin metal or resin-filled plywood.
- Has an indented top surface, six flat sides with a flat washer which projects beyond the sides and provides a flat bearing surface.
- The washer and head are formed together as one piece. (Hex washer head)
- Increased bearing area reduces likelihood of crushing mating surfaces.
- Zinc plated steel.
- Screw diameter 5/16
- Screw length 2 inches
$148.98
$1.4898
$1.4898
MACHINE SCREW HEX HEAD TYP-F 3/8"-16 X 1-1/2" THREAD CUTTING
3816X112HTYF
- A thread cutting screw with machined screw thread pitch, blunt point, tapered entering threads and multiple cutting edges.
- Steel thread-cutters are used in heavy gauge sheet metal, aluminum, zinc and lead die castings, cast iron, brass and plastic.
- When using any thread-cutting screw, the material in which the threads are cut should have a lower hardness by at least 10 to 20 Rockwell hardness points.
- Made from zinc plated AISI 1016-1024 steel or equivalent.
- Type F thread cutting style.
- Hex washer slotted head.
- 3/8-16 diameter.
- Length of 1-1/2".
$44.94
$0.8988
$0.8988
MACHINE SCREW HEX HEAD TYP-F 3/8"-16 X 1" THREAD CUTTING
3816X1HTYF
- A thread cutting screw with machined screw thread pitch, blunt point, tapered entering threads and multiple cutting edges.
- Steel thread-cutters are used in heavy gauge sheet metal, aluminum, zinc and lead die castings, cast iron, brass and plastic.
- When using any thread-cutting screw, the material in which the threads are cut should have a lower hardness by at least 10 to 20 Rockwell hardness points.
- Made from zinc plated AISI 1016-1024 steel or equivalent.
- Type F thread cutting style.
- Hex washer slotted head.
- 3/8-16 diameter.
- Length of 1".
$39.88
$0.7976
$0.7976

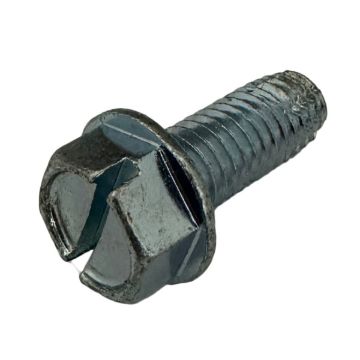

MACHINE SCREW HEX HEAD TYP-F 3/8"-16 X 3/4" THREAD CUTTING
3816X34HTYF
- A thread cutting screw with machined screw thread pitch, blunt point, tapered entering threads and multiple cutting edges.
- Steel thread-cutters are used in heavy gauge sheet metal, aluminum, zinc and lead die castings, cast iron, brass and plastic.
- When using any thread-cutting screw, the material in which the threads are cut should have a lower hardness by at least 10 to 20 Rockwell hardness points.
- Made from zinc plated AISI 1016-1024 steel or equivalent.
- Type F thread cutting style.
- Hex washer slotted head.
- 3/8-16 diameter.
- Length of 3/4".
$67.13
$1.3426
$1.3426
