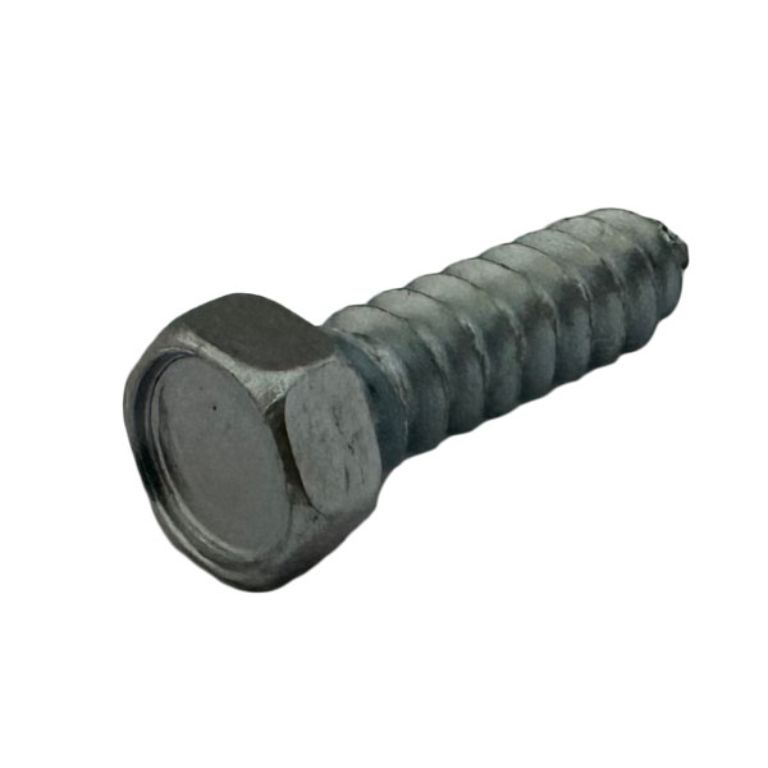

SHEET METAL SCREW HEX WASH HD #20 X 1"

  • A thread forming tapping screw with spaced threads and a gimlet point.
  • For self starting in thin metal or resin-filled plywood.
  • Has an indented top surface, six flat sides with a flat washer which projects beyond the sides and provides a flat bearing surface.
  • The washer and head are formed together as one piece. (Hex washer head)
  • Increased bearing area reduces likelihood of crushing mating surfaces.
  • Zinc plated steel.
  • Screw diameter 5/16
  • Screw length 1 inch
    Part #: 20X1H
    Availability:
    In Stock
    Price: $57.28
    $0.5728
    i h h
    The SHEET METAL SCREW HEX WASH HD #20 X 1" is a high-performance thread forming tapping screw with spaced threads and a gimlet point, ensuring efficient self-starting in thin metal or resin-filled plywood. Its hex head design offers improved grip and torque application, making it ideal for various industrial and automotive uses. This screw features an indented top surface, enhancing its aesthetic and functional qualities. Designed for reliability and strength, it is suitable for a range of fastening needs in demanding environments.
