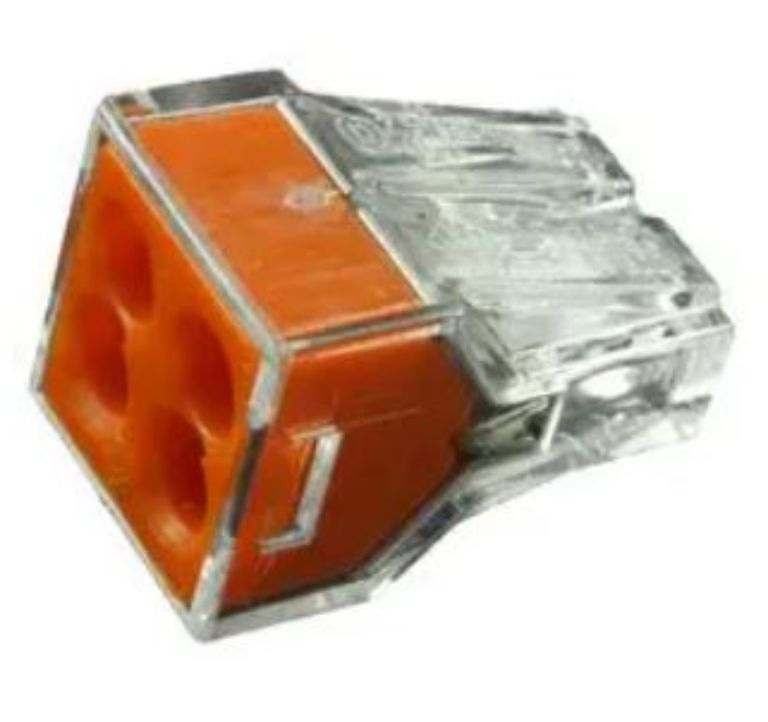

WAGO PUSH-IN WIRE CONNECTOR 4 WAY 16-12 GAUGE

  • The 773 series PUSH WIRE® Connector for junction boxes provides an immediate solution for use with solid conductors with cross-sections up 4mm²
  • compact design
  • Current Rating: 20A
  • Voltage Rating: 600V
  • Side entry wiring type
  • Applications: Industrial, Communications & Networking, Lighting, Security, Signalling, HVAC
  • Maximum Operating Temperature: 105°C
  • Wire Size AWG Min: 18 AWG
  • Wire Size AWG Max: 12 AWG
  • Tin Plated Contacts
    Part #: X773-164
    Availability: Special Order - 7 to 10 day lead time
    Price: $135.85
    $1.3585
    i h h
    The WAGO PUSH-IN Wire Connector 4 Way is designed for use with solid conductors ranging from 16 to 12 gauge, offering a compact solution for junction boxes. With a current rating of 20A and a voltage rating of 600V, this connector ensures efficient and secure connections in demanding industrial environments. The side entry wiring type simplifies installation, making it ideal for various applications where reliability and performance are essential.
    Products specifications
    Style WAGO
    Type Push-in Connector
    Wire Gauge Range 16-12 ga.
