Ram Products | Threaded Inserts

THREADED INSERT NUT UNC ALUM #10-24 THICKNESS 3/32

TINA1024

Aluminum threaded inserts.
Use in any thickness of metal or rigid material of at least 3/32".
Eliminates the need for tapping, welding and brazing.
During installation the base is drawn upwards inside the upper sleeve forcing 360° contact between the sleeve and application material.

$68.415
$1.3683

+ -

THREADED INSERT NUT UNC ALUM 1/4"-20 THICKNESS 3/32

TINA1420

Aluminum threaded inserts.
Use in any thickness of metal or rigid material of at least 3/32".
Eliminates the need for tapping, welding and brazing.
During installation the base is drawn upwards inside the upper sleeve forcing 360° contact between the sleeve and application material.

$68.575
$2.743

+ -

THREADED INSERT NUT UNC ALUM 3/8"-16 THICKNESS 3/32

TINA3816

Aluminum threaded inserts.
Use in any thickness of metal or rigid material of at least 3/32".
Eliminates the need for tapping, welding and brazing.
During installation the base is drawn upwards inside the upper sleeve forcing 360° contact between the sleeve and application material.

$28.646
$2.8646

+ -

THREADED INSERT NUT UNC ALUM 5/16"-18 THICKNESS 3/32

TINA5618

Aluminum threaded inserts.
Use in any thickness of metal or rigid material of at least 3/32".
Eliminates the need for tapping, welding and brazing.
During installation the base is drawn upwards inside the upper sleeve forcing 360° contact between the sleeve and application material.

$70.915
$2.8366

+ -

THREADED INSERT NUT UNC ALUM #6-32 THICKNESS 3/32

TINA632

Aluminum threaded inserts.
Use in any thickness of metal or rigid material of at least 3/32".
Eliminates the need for tapping, welding and brazing.
During installation the base is drawn upwards inside the upper sleeve forcing 360° contact between the sleeve and application material.

$59.01
$1.1802

+ -

THREADED INSERT NUT UNC ALUM #8-32 THICKNESS 3/32

TINA832

Aluminum threaded inserts.
Use in any thickness of metal or rigid material of at least 3/32".
Eliminates the need for tapping, welding and brazing.
During installation the base is drawn upwards inside the upper sleeve forcing 360° contact between the sleeve and application material.

$59.01
$1.1802

+ -

THREADED INSERT NUT UNC STEEL 1/4"-20 THICKNESS 3/32

TINS1420

Steel threaded inserts.
Use in any thickness of metal or rigid material of at least 3/32".
Eliminates the need for tapping, welding and brazing.
During installation the base is drawn upwards inside the upper sleeve forcing 360° contact between the sleeve and application material.

$45.4025
$1.8161

+ -

THREADED INSERT NUT UNC STEEL #10-24 THICKNESS 3/32

TINS1024

Steel threaded inserts.
Use in any thickness of metal or rigid material of at least 3/32".
Eliminates the need for tapping, welding and brazing.
During installation the base is drawn upwards inside the upper sleeve forcing 360° contact between the sleeve and application material.

$68.90
$1.378

+ -

THREADED INSERT NUT UNF STEEL #10-32 THICKNESS 3/32

TINS1032

Steel threaded inserts.
Use in any thickness of metal or rigid material of at least 3/32".
Eliminates the need for tapping, welding and brazing.
During installation the base is drawn upwards inside the upper sleeve forcing 360° contact between the sleeve and application material.

$68.90
$1.378

+ -

THREADED INSERT NUT UNC STEEL 3/8"-16 THICKNESS 3/32

TINS3816

Steel threaded inserts.
Use in any thickness of metal or rigid material of at least 3/32".
Eliminates the need for tapping, welding and brazing.
During installation the base is drawn upwards inside the upper sleeve forcing 360° contact between the sleeve and application material.

$33.048
$3.3048

+ -

THREADED INSERT NUT UNC STEEL #6-32 THICKNESS 3/32

TINS632

Steel threaded inserts.
Use in any thickness of metal or rigid material of at least 3/32".
Eliminates the need for tapping, welding and brazing.
During installation the base is drawn upwards inside the upper sleeve forcing 360° contact between the sleeve and application material.

$54.985
$1.0997

+ -

THREADED INSERT NUT UNC STEEL 5/16"-18 THICKNESS 3/32

TINS5618

Steel threaded inserts.
Use in any thickness of metal or rigid material of at least 3/32".
Eliminates the need for tapping, welding and brazing.
During installation the base is drawn upwards inside the upper sleeve forcing 360° contact between the sleeve and application material.

$32.2175
$1.2887

+ -

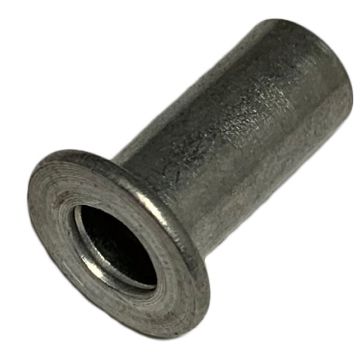

FLATHEAD THREADED NUT UNF ALUM #10-32 THICKNESS .010-.080

FTNA1032

Aluminum Flat Head rivet nuts.
Are designed to provide a very efficient and cost-effective method of placing permanent threads in thin materials.
Perfect for use in metals, fiberglass, and rigid plastics.
Provide a neat appearance.
Provide permanent, captive threads after installation.
Flat Head design provides the most bearing surface for higher torque applications.
Hole size: .250 min .254 max

$37.16
$0.7432

+ -

FLATHEAD THREADED NUT UNC STEEL #10-32 THICKNESS .010-.080

FTNS1032

Steel Flat Head rivet nuts.
Are designed to provide a very efficient and cost-effective method of placing permanent threads in thin materials.
Perfect for use in metals, fiberglass, and rigid plastics.
Provide a neat appearance.
Provide permanent, captive threads after installation.
Flat Head design provides the most bearing surface for higher torque applications.
Hole size: .250 min .254 max

$38.64
$0.7728

+ -

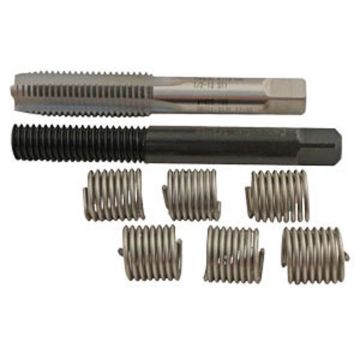

HELICALLY COILED INSERT KIT UNC 1/2"-13

HCI12CK

Made of stainless steel wire that has been rolled to a carefully controlled thread form.
When installed, inserts adjust to a tapped hole, becoming a functional thread with a strength exceeding the original.
Designed to repair stripped threads in a variety of metals, aluminum, aluminum alloys, steel and cast iron.
Thread size:1/2"-13
Drill size: 17/32

$56.315

+ -

HELICALLY COILED INSERT KIT UNC 1/4"-20

HCI14CK

Made of stainless steel wire that has been rolled to a carefully controlled thread form.
When installed, inserts adjust to a tapped hole, becoming a functional thread with a strength exceeding the original.
Designed to repair stripped threads in a variety of metals, aluminum, aluminum alloys, steel and cast iron.
Thread size:1/4"-20
Drill size: 17/64

$43.085

+ -

HELICALLY COILED INSERT KIT UNC 3/8"-16

HCI38CK

Made of stainless steel wire that has been rolled to a carefully controlled thread form.
When installed, inserts adjust to a tapped hole, becoming a functional thread with a strength exceeding the original.
Designed to repair stripped threads in a variety of metals, aluminum, aluminum alloys, steel and cast iron.
Thread size:3/8"-16
Drill size: 25/64

$43.085

+ -

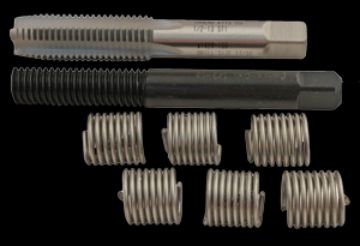

HELICALLY COILED INSERT KIT UNC 5/16"-18

HCI56CK

Made of stainless steel wire that has been rolled to a carefully controlled thread form.
When installed, inserts adjust to a tapped hole, becoming a functional thread with a strength exceeding the original.
Designed to repair stripped threads in a variety of metals, aluminum, aluminum alloys, steel and cast iron.
Thread size:5/16"-18
Drill size: 21/64

$43.085

+ -

HELICALLY COILED INSERT KIT UNF 5/16"-24

HCI56FK

Made of stainless steel wire that has been rolled to a carefully controlled thread form.
When installed, inserts adjust to a tapped hole, becoming a functional thread with a strength exceeding the original.
Designed to repair stripped threads in a variety of metals, aluminum, aluminum alloys, steel and cast iron.
Thread size:5/16"-24
Drill size: 21/64

$38.29

+ -

HELICALLY COILED INSERT KIT UNF 7/16"-20

HCI76FK

Made of stainless steel wire that has been rolled to a carefully controlled thread form.
When installed, inserts adjust to a tapped hole, becoming a functional thread with a strength exceeding the original.
Designed to repair stripped threads in a variety of metals, aluminum, aluminum alloys, steel and cast iron.
Thread size:7/16"-20
Drill size: 29/64

$42.14

+ -
