Terminals & Wire Connectors
FERRULE CONNECTOR NYLON 10 GAUGE, GREEN
FC10
- Wire ferrules, once crimped onto the end of a wire, add stability to the conductor end and assures that no damage will occur to the wire brush.
- Nylon insulated.
- Tin plated copper.
- Maximum Electrical Rating: 221° F - 600v.
- Maximum Electrical Current: 12A.
$41.58
$0.4158
$0.4158
FERRULE CONNECTOR NYLON 12 GAUGE, ORANGE
FC12
- Wire ferrules, once crimped onto the end of a wire, add stability to the conductor end and assures that no damage will occur to the wire brush.
- Nylon insulated.
- Tin plated copper.
- Maximum Electrical Rating: 221° F - 600v.
- Maximum Electrical Current: 12A.
$35.86
$0.3586
$0.3586
FERRULE CONNECTOR NYLON 14 GAUGE, GRAY
FC14
- Wire ferrules, once crimped onto the end of a wire, add stability to the conductor end and assures that no damage will occur to the wire brush.
- Nylon insulated.
- Tin plated copper.
- Maximum Electrical Rating: 221° F - 600v.
- Maximum Electrical Current: 12A.
$25.80
$0.258
$0.258
FERRULE CONNECTOR NYLON 16 GAUGE, BLACK
FC16
- Wire ferrules, once crimped onto the end of a wire, add stability to the conductor end and assures that no damage will occur to the wire brush.
- Nylon insulated.
- Tin plated copper.
- Maximum Electrical Rating: 221° F - 600v.
- Maximum Electrical Current: 12A.
$21.45
$0.2145
$0.2145
FERRULE CONNECTOR NYLON 18 GAUGE, RED
FC18
- Wire ferrules, once crimped onto the end of a wire, add stability to the conductor end and assures that no damage will occur to the wire brush.
- Nylon insulated.
- Tin plated copper.
- Maximum Electrical Rating: 221° F - 600v.
- Maximum Electrical Current: 12A.
$21.00
$0.21
$0.21
FERRULE CONNECTOR NYLON 22 GAUGE, WHITE
FC22
- Wire ferrules, once crimped onto the end of a wire, add stability to the conductor end and assures that no damage will occur to the wire brush.
- Nylon insulated.
- Tin plated copper.
- Maximum Electrical Rating: 221° F - 600v.
- Maximum Electrical Current: 12A.
$21.00
$0.21
$0.21

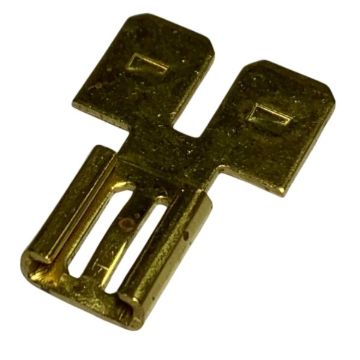

TERMINAL NON-INS .250" FEM TAB TO 2 MALE TABS
FMM
- Double male, single female quick disconnect adapter.
- Non plated, non insulated.
- .250” x .032” tab size.
$46.08
$0.4608
$0.4608
TERMINAL NON-INS .250" FEM TO 2 MALES, FLAG
FMM-90
- Double male, 90° single female quick disconnect adapter.
- Non plated, non insulated.
- .250” x .032” tab size.
$29.92
$0.5984
$0.5984
ELECTRICAL CONNECTOR-TAP 18-14 GA, BLUE
FRSL14
- Self-stripping squeeze-shut connectors require no wire stripping or twisting.
- For electrical wiring applications up to 600V.
- Solvent-resistant plastic construction.
- Unique "U" contact and full insulation for safe, dependable connections.
- UL listed.
- Tap & Parallel connection.
- T-Tap disconnect.
- Temperature rating to 221° F.
$68.00
$0.68
$0.68
ELECTRICAL CONNECTOR-TAP 12 GA, YELLOW
FRSL12
- Self-stripping squeeze-shut connectors require no wire stripping or twisting.
- For electrical wiring applications up to 600V.
- Solvent-resistant plastic construction.
- Unique "U" contact and full insulation for safe, dependable connections.
- UL listed.
- Tap & Parallel connection.
- T-Tap disconnect.
- Temperature rating to 221° F.
$74.34
$0.7434
$0.7434
ELECTRICAL CONNECTOR-TAP 22-18 GA, RED
FRSL18
- Self-stripping squeeze-shut connectors require no wire stripping or twisting.
- For electrical wiring applications up to 600V.
- Solvent-resistant plastic construction.
- Unique "U" contact and full insulation for safe, dependable connections.
- UL listed.
- Tap & Parallel connection.
- T-Tap disconnect.
- Temperature rating to 221° F.
$69.12
$0.6912
$0.6912
TERMINAL FEMALE BULLET VINYL 16-14 GAUGE, .156" BULLET
FSC156FV
- Bullet connectors offer a convenient way to hook up electrical connections in line.
- Ensure safe and convenient electrical connections.
- Female receptacle.
- Vinyl insulated.
- .156" connector size.
- For use with 16-14 gauge wire.
$60.80
$0.608
$0.608
WIRE NUT 22-16 GA, GRAY
G71
- A coned shaped, plated steel spring conforms to the inside contour of the insulating shell, which supports the spring as the conductor is driven up into the cone.
- Requiring no pretwisting, the wire is automatically twisted together for a secure connector and maximum contact.
- Fixed spring wire connectors may be used to make a branch circuit or fixture wire connections on numerous combinations of sold and/or stranded wire.
- UL listed and CSA certified as pressure-type connectors.
- Rated 600 volts maximum.
- Temperature rating to 221° F.
$27.60
$0.276
$0.276
WIRE NUT 14-6 GA, BLUE/GREY SKIRTED
GB86SL
- A coned shaped, plated steel spring conforms to the inside contour of the insulating shell, which supports the spring as the conductor is driven up into the cone.
- Requiring no pretwisting, the wire is automatically twisted together for a secure connector and maximum contact.
- Fixed spring wire connectors may be used to make a branch circuit or fixture wire connections on numerous combinations of sold and/or stranded wire.
- UL listed and CSA certified as pressure-type connectors.
- Rated 600 volts maximum.
- Temperature rating to 221° F.
$45.5825
$1.8233
$1.8233
TERMINAL STEP DOWN HEAT SHRINK 8 GAUGE TO 12-10
HLB1210
- Clear tubing with yellow dashes on one side and red dashes on the other.
- Color dash on tubing indicates the wire gauge for the connector.
- Color stripes on the connector indicate which crimp die to use.
- Tubing has an active adhesive that seals between multiple wires.
- Maximum voltage rating: 600v.
$140.10
$5.604
$5.604
TERMINAL STEP DOWN HEAT SHRINK 12-10 GAUGE TO 16-14
HLB1614
- Clear tubing with blue dashes on one side and yellow dashes on the other.
- Color dash on tubing indicates the wire gauge for the connector.
- Color stripes on the connector indicate which crimp die to use.
- Tubing has an active adhesive that seals between multiple wires.
- Maximum voltage rating: 600v.
$95.745
$3.8298
$3.8298
TERMINAL STEP DOWN HEAT SHRINK 16-14 GAUGE TO 20-18
HLB2018
- Clear tubing with red dashes on one side and blue dashes on the other.
- Color dash on tubing indicates the wire gauge for the connector.
- Color stripes on the connector indicate which crimp die to use.
- Tubing has an active adhesive that seals between multiple wires.
- Maximum operating temperature 230°F.
- Maximum voltage rating: 600v.
$79.87
$3.1948
$3.1948
TERMINAL CLOSED END HEATSHRINK 18-10 GAUGE
HLC1810
- Crimpable closed end connectors.
- Easily connect solid or stranded wires.
- Tubing has an active adhesive that seals multiple wires and eliminates wire pull-out.
- Can be used to replace wire nut of the same size where corrosion or vibration is a problem.
- Clear tube color with yellow dashes.
$51.6425
$2.0657
$2.0657
TERMINAL CLOSED END HEATSHRINK 22-14 GAUGE
HLC2214
- Crimpable closed end connectors.
- Easily connect solid or stranded wires.
- Tubing has an active adhesive that seals multiple wires and eliminates wire pull-out.
- Can be used to replace wire nut of the same size where corrosion or vibration is a problem.
- Clear tube color with blue dashes.
$39.96
$1.5984
$1.5984
TERMINAL BUTT HEAT SHRINK 20-18 GAUGE
HSA
- Wire terminal that is designed to allow the connection of two wires in line.
- Also known as butt splice.
- Wire gauge: 20-18.
- Heat shrink insulated.
- Operating temperature range: -67° F to 257° F.
- Insulation color: red.
- 600 volt max.
- 25 per bag.
$25.935
$1.0374
$1.0374
TERMINAL BUTT HEAT SHRINK 16-14 GAUGE
HSB
- Wire terminal that is designed to allow the connection of two wires in line.
- Also known as butt splice.
- Wire gauge: 16-14.
- Heat shrink insulated.
- Operating temperature range: -67° F to 257° F.
- Insulation color: blue.
- 600 volt max.
- 25 per bag.
$26.495
$1.0598
$1.0598
TERMINAL BUTT HEAT SHRINK 22-18 GAUGE
HSA-C
- Wire terminal that is designed to allow the connection of two wires in line.
- Also known as butt splice.
- Wire gauge: 20-18.
- Heat shrink insulated.
- Operating temperature range: -67° F to 257° F.
- Insulation color: red.
- 600 volt max.
- 100 per bag.
$107.24
$1.0724
$1.0724
TERMINAL BUTT HEAT SHRINK 16-14 GAUGE
HSB-C
- Wire terminal that is designed to allow the connection of two wires in line.
- Also known as butt splice.
- Wire gauge: 16-14.
- Heat shrink insulated.
- Operating temperature range: -67° F to 257° F.
- Insulation color: blue.
- 600 volt max.
- 100 per bag.
$109.62
$1.0962
$1.0962
TERMINAL BUTT HEAT SHRINK 12-10 GAUGE
HSC-C
- Wire terminal that is designed to allow the connection of two wires in line.
- Also known as butt splice.
- Wire gauge: 12-10.
- Heat shrink insulated.
- Operating temperature range: -67° F to 257° F.
- Insulation color: yellow.
- 600 volt max.
- 100 per bag.
$137.15
$1.3715
$1.3715
