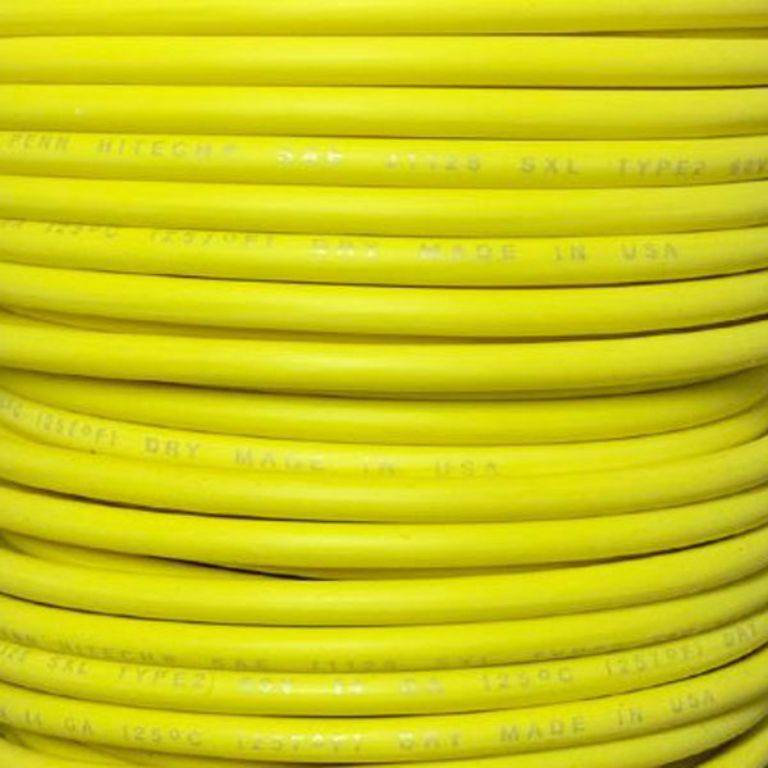

SXL CROSSLINK WIRE 500' SPL 10 GAUGE, YELLOW

  • Cross-linked polyethylene wire.
  • Vulcanized to obtain thermosetting insulation which will not melt when exposed to heat.
  • For use at 60 volts or less.
  • Rated at 125°C (257°F), low temperature rating of -40°C (-40°F).
  • Meets SAE J1128 specifications.
  • RoHS compliant.
  • Resistant to grease, oil, gasoline, and acid.
  • General purpose automotive and marine wire for circuit wiring where higher heat resistance is required.
  • 10 gauge, yellow
  • 500 foot spool, 10-1/2" wide x 4" tall x 3-1/2" i.d. spool
    Part #: SXL10D5
    Availability:
    Special Order - 7 to 10 day lead time
    Price: $834.75
    $1.6695
    i h h
    The SXL Crosslink Wire is designed with cross-linked polyethylene insulation, providing exceptional thermal resistance and durability. With a gauge of 10 and a length of 500 feet, this wire is ideal for applications requiring reliable conductivity at 60 volts or less. Rated for high temperatures up to 125 C (257 F), it is suitable for environments where exposure to heat is a concern. Its vibrant yellow color enhances visibility for easier identification during installations.
    Products specifications
    Quantity 500'
    Gauge 10 Gauge
    Color Yellow
