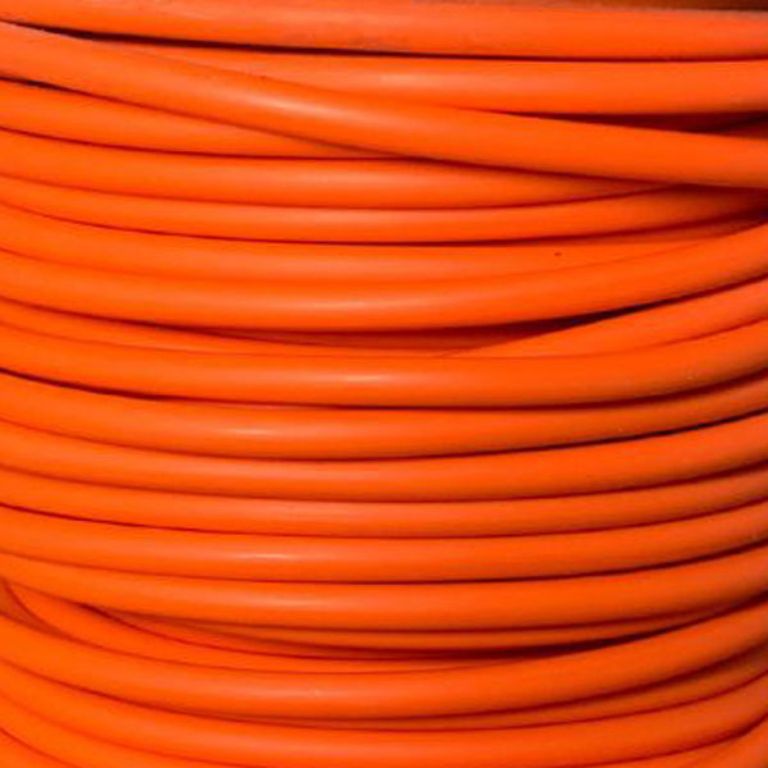

SXL CROSSLINK WIRE 1000' SPL 14 GAUGE, ORANGE

  • Cross-linked polyethylene wire.
  • Vulcanized to obtain thermosetting insulation which will not melt when exposed to heat.
  • For use at 60 volts or less.
  • Rated at 125°C (257°F), low temperature rating of -40°C (-40°F).
  • Meets SAE J1128 specifications.
  • RoHS compliant.
  • Resistant to grease, oil, gasoline, and acid.
  • General purpose automotive and marine wire for circuit wiring where higher heat resistance is required.
  • 14 gauge, orange
  • 1,000 foot spool, 10-1/2" wide x 4" tall x 3-1/2" i.d. spool
    Part #: SXL14M0
    Availability:
    Special Order - 7 to 10 day lead time
    Price: $747.00
    $0.747
    i h h
    The SXL Crosslink Wire is a 14 gauge, 1000-foot roll of orange wire designed for use in applications requiring reliable insulation. Made from cross-linked polyethylene, this wire features vulcanized thermosetting insulation that remains intact under heat exposure, making it suitable for environments of 60 volts or less. With a temperature rating of 125 C (257 F), it is perfect for automotive and industrial uses where durability and performance are essential.
    Products specifications
    Quantity 1000'
    Gauge 14 Gauge
    Color Orange
