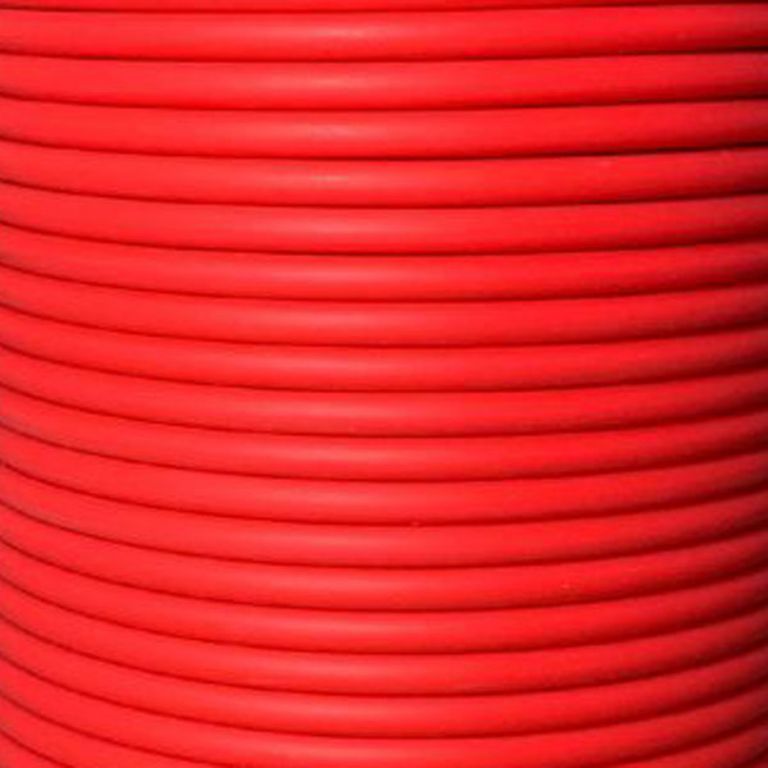

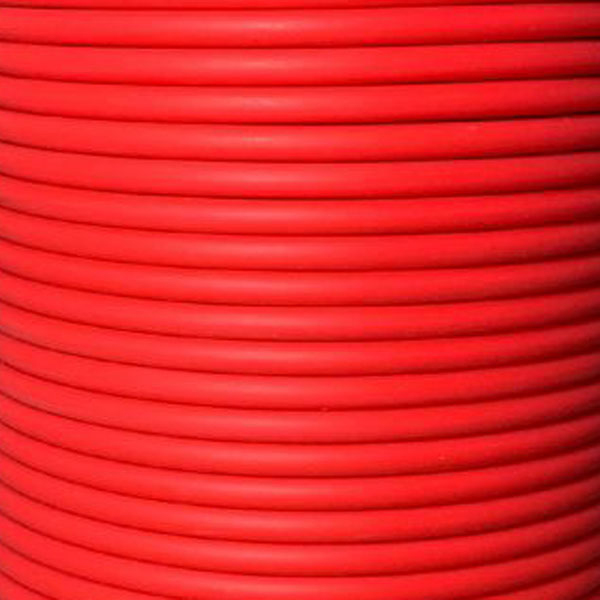

SXL CROSSLINK WIRE 1000' SPL 10 GAUGE, RED

  • Cross-linked polyethylene wire.
  • Vulcanized to obtain thermosetting insulation which will not melt when exposed to heat.
  • For use at 60 volts or less.
  • Rated at 125°C (257°F), low temperature rating of -40°C (-40°F).
  • Meets SAE J1128 specifications.
  • RoHS compliant.
  • Resistant to grease, oil, gasoline, and acid.
  • General purpose automotive and marine wire for circuit wiring where higher heat resistance is required.
  • 10 gauge, red
  • 1,000 foot spool, 17-1/2" wide x 8-1/2" tall x 8" i.d. spool
    Part #: SXL10M1
    Availability:
    Special Order - 7 to 10 day lead time
    Price: $1,669.50
    $1.6695
    i h h
    The SXL Crosslink Wire, 10 Gauge, in a vibrant red color, measures 1000 feet in length and is designed for use in environments with temperatures up to 125 C (257 F). Crafted with cross-linked polyethylene insulation, this wire is vulcanized to ensure thermosetting properties that prevent melting when exposed to heat. Suitable for applications at 60 volts or less, it provides reliability and performance in automotive and industrial wiring solutions.
    Products specifications
    Color Red
    Gauge 10 Gauge
    Quantity 1000'
