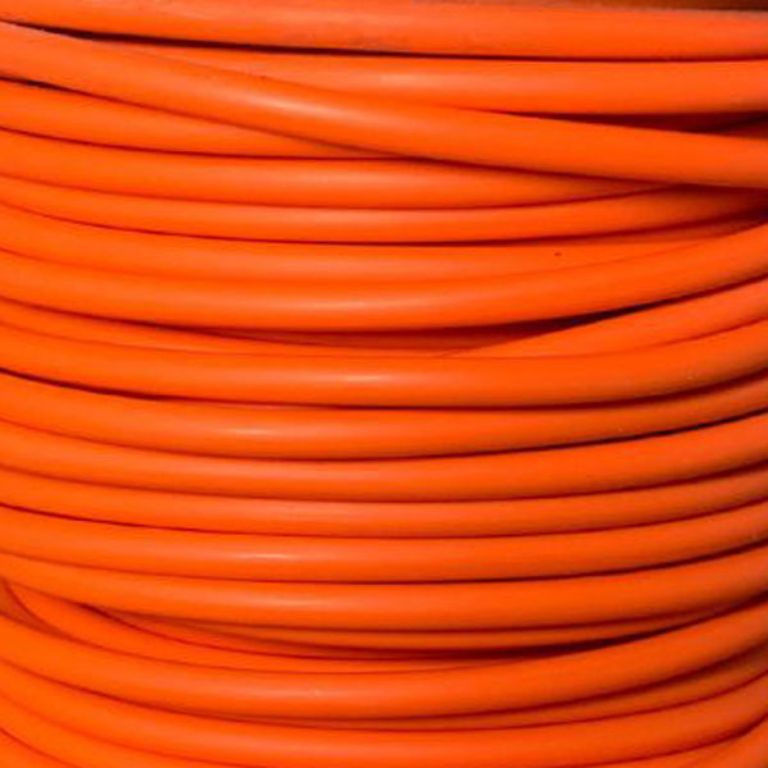

SXL CROSSLINK WIRE 1000' SPL 10 GAUGE, ORANGE

  • Cross-linked polyethylene wire.
  • Vulcanized to obtain thermosetting insulation which will not melt when exposed to heat.
  • For use at 60 volts or less.
  • Rated at 125°C (257°F), low temperature rating of -40°C (-40°F).
  • Meets SAE J1128 specifications.
  • RoHS compliant.
  • Resistant to grease, oil, gasoline, and acid.
  • General purpose automotive and marine wire for circuit wiring where higher heat resistance is required.
  • 10 gauge, orange
  • 1,000 foot spool, 17-1/2" wide x 8-1/2" tall x 8" i.d. spool
    Part #: SXL10M0
    Availability:
    Special Order - 7 to 10 day lead time
    Price: $416.50
    $0.4165
    i h h
    The SXL Crosslink Wire is a robust 10 gauge wire featuring orange cross-linked polyethylene insulation. Designed for use at 60 volts or less, it offers exceptional heat resistance with a rating of 125 C (257 F). Its vulcanized thermosetting insulation ensures it will not melt when exposed to high temperatures, making it suitable for demanding automotive and industrial environments. This 1000-foot spool provides ample length for various wiring projects and installations.
    Products specifications
    Gauge 10 Gauge
    Quantity 1000'
    Color Orange
