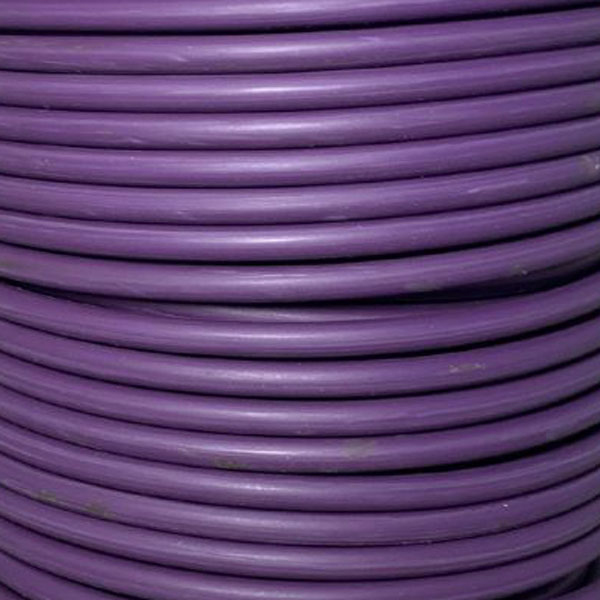

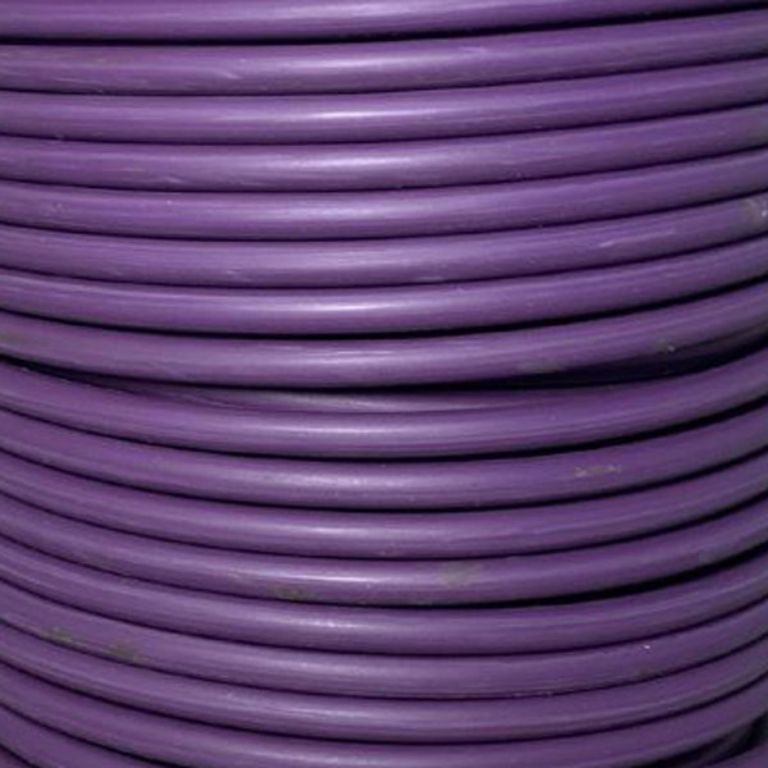

SXL CROSSLINK WIRE 100' SPL 12 GAUGE, PURPLE

  • Cross-linked polyethylene wire.
  • Vulcanized to obtain thermosetting insulation which will not melt when exposed to heat.
  • For use at 60 volts or less.
  • Rated at 125°C (257°F), low temperature rating of -40°C (-40°F).
  • Meets SAE J1128 specifications.
  • RoHS compliant.
  • Resistant to grease, oil, gasoline, and acid.
  • General purpose automotive and marine wire for circuit wiring where higher heat resistance is required.
  • 12 gauge, purple
  • 100 foot spool, 6-1/2" wide x 2-1/2" tall x 2" i.d. spool
    Part #: SXL12C9
    Availability:
    Special Order - 7 to 10 day lead time
    Price: $70.00
    $0.70
    i h h
    The SXL Crosslink Wire is a robust 12 gauge wire featuring cross-linked polyethylene insulation, ensuring superior durability and heat resistance. With a temperature rating of 125 C (257 F) and suitable for use at 60 volts or less, this 100-foot purple wire is ideal for automotive and industrial applications where reliability is critical. Its thermosetting insulation is vulcanized to prevent melting under extreme conditions, making it a dependable choice for your wiring needs.
    Products specifications
    Color Purple
    Quantity 100'
    Gauge 12 Gauge
