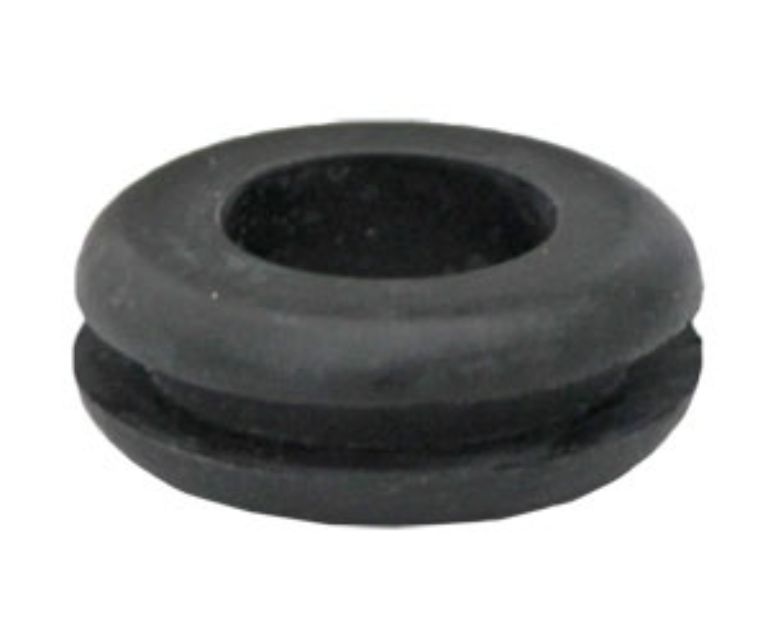

RUBBER GROMMET 7/8 I.D. 1 1/4 DRILL 3/16 GROOVE

  • Protects wires from chafing against drilled holes.
  • Grommets are sized by groove width, inside dimension, and groove diameter.
  • Made from 60 durometer SBR rubber.
  • 7/8" inside dimension, 1-1/4" drill hole, with a 3/16" groove.
    Part #: XRG931B1420
    Availability:
    In Stock
    Price: $510.00
    $5.10
    i h h
    The RUBBER GROMMET 7/8 I.D. 1 1/4 DRILL 3/16 GROOVE is engineered for durability and reliability in automotive and industrial settings. With an inside diameter of 7/8" and a robust outer diameter of 1-5/8", this grommet features a groove diameter of 1-1/4" and a groove width of 3/16". Constructed from styrene-butadiene rubber, it withstands temperature extremes from -60 F to 180 F, making it ideal for applications that require effective insulation and protection against environmental factors.
    Products specifications
    Overall Thickness 9/16"
    Temp. Range Max 180 F
    Inside Diameter 7/8"
    Outer Diameter 1-5/8"
    Material Styrene-Butadiene Rubber
    Groove Diameter 1-1/4"
    Groove Width 3/16"
    Temp. Range Min -60 F
    Usage Not to be used in chemical or fuel environment
