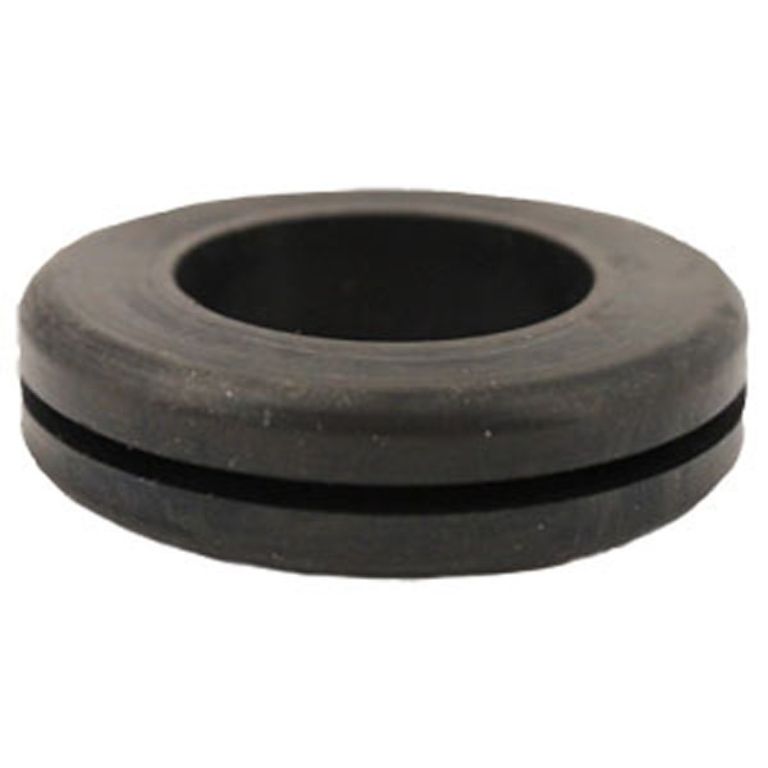

RUBBER GROMMET 5/8"ID, 7/8"DRILL, 1/16"GRV

  • Protects wires from chafing against drilled holes.
  • Grommets are sized by groove width, inside dimension, and groove diameter.
  • Made from 60 durometer SBR rubber.
  • 8/8" inside dimension, 7/8" drill hole, with a 1/16" groove.
    Part #: RG58
    Availability:
    In Stock
    Price: $63.00
    $1.26
    i h h
    The RUBBER GROMMET 5/8"ID, 7/8"DRILL, 1/16"GRV is crafted from high-quality Styrene-Butadiene Rubber, providing excellent durability and protection for wires. With a temperature range from -60 F to 180 F, it is ideal for various automotive and industrial applications. This grommet features an inner diameter of 5/8", an outer diameter of 1-1/8", and a groove width of 1/16", ensuring a secure fit in drilled holes. Use it to prevent chafing and extend the life of your wiring systems.
    Products specifications
    Material Styrene-Butadiene Rubber
    Overall Thickness 5/16"
    Temp. Range Max 180 F
    Groove Diameter 7/8"
    Inside Diameter 5/8"
    Outer Diameter 1-1/8"
    Groove Width 1/16"
    Temp. Range Min -60 F
    Usage Not to be used in chemical or fuel environment
