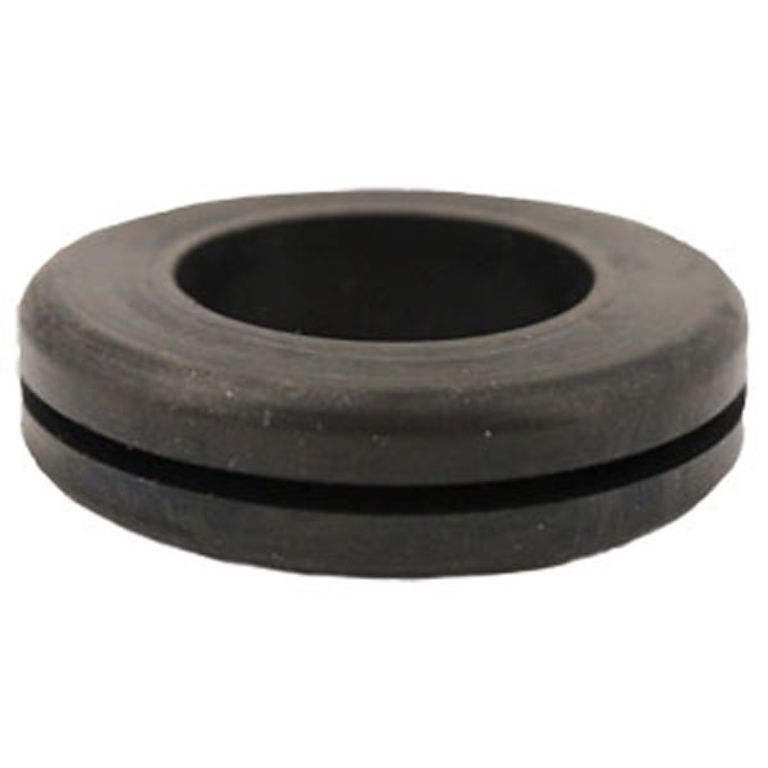

RUBBER GROMMET 3/4"ID, 1-1/16"DRILL, 1/16"GRV

  • Protects wires from chafing against drilled holes.
  • Grommets are sized by groove width, inside dimension, and groove diameter.
  • Made from 60 durometer SBR rubber.
  • 3/4" inside dimension, 1-1/16" drill hole, with a 1/16" groove.
    Part #: RG34
    Availability:
    In Stock
    Price: $87.00
    $3.48
    i h h
    The RUBBER GROMMET 3/4"ID, 1-1/16"DRILL, 1/16"GRV is made from high-quality Styrene-Butadiene Rubber, providing excellent durability and resistance to extreme temperatures ranging from -60 F to 180 F. With an outer diameter of 1-3/8" and an overall thickness of 3/8", this grommet features a groove width of 1/16" and is specifically engineered to protect wires from damage caused by sharp edges in drilled holes. Ideal for automotive and industrial applications, it ensures reliable performance in various environments.
    Products specifications
    Groove Width 1/16"
    Material Styrene-Butadiene Rubber
    Temp. Range Max 180 F
    Temp. Range Min -60 F
    Overall Thickness 3/8"
    Outer Diameter 1-3/8"
    Inside Diameter 3/4"
    Groove Diameter 1-1/16"
    Usage Not to be used in chemical or fuel environment
