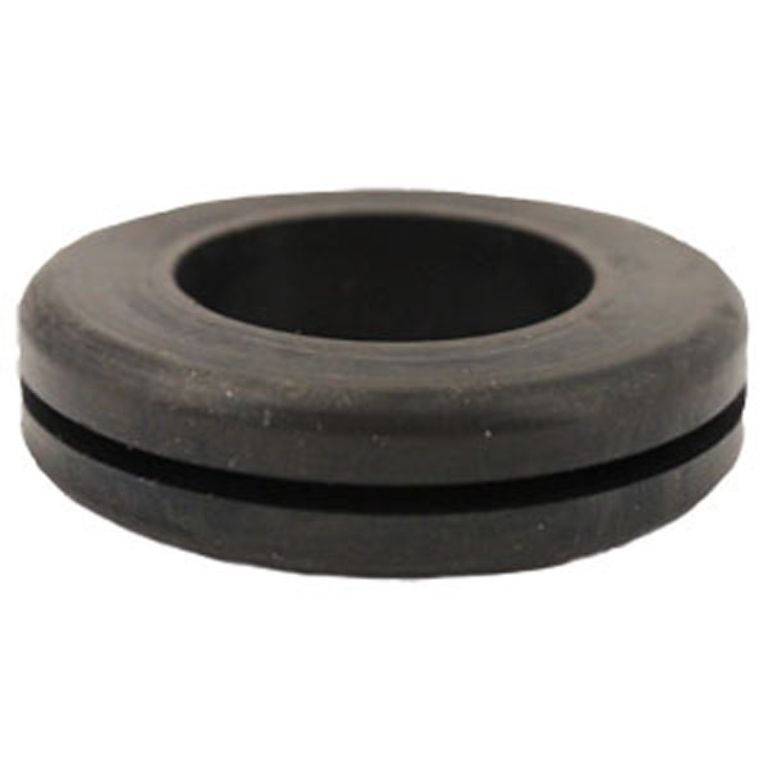

RUBBER GROMMET 1/2"ID, 3/4"DRILL, 3/32"GRV

  • Protects wires from chafing against drilled holes.
  • Grommets are sized by groove width, inside dimension, and groove diameter.
  • Made from 60 durometer SBR rubber.
  • 1/2" inside dimension, 13/16" drill hole, with a 3/32" groove.
    Part #: RG12
    Availability:
    In Stock
    Price: $188.50
    $1.885
    i h h
    The RUBBER GROMMET 1/2" ID, 3/4" DRILL, 3/32" GRV is engineered to safeguard wires from abrasion and wear when passing through drilled surfaces. Constructed from high-quality Styrene-Butadiene Rubber, it offers a temperature range from -60 F to 180 F, ensuring reliable performance in various environments. With an overall thickness of 9/32" and an outer diameter of 31/32", this grommet is ideal for a variety of industrial applications where wire protection and durability are essential.
    Products specifications
    Overall Thickness 9/32"
    Groove Diameter 3/4"
    Temp. Range Max 180 F
    Material Styrene-Butadiene Rubber
    Outer Diameter 31/32"
    Temp. Range Min -60 F
    Groove Width 3/32"
    Inside Diameter 1/2"
    Usage Not to be used in chemical or fuel environment
