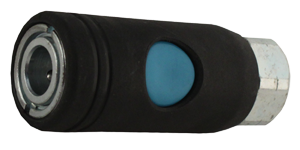

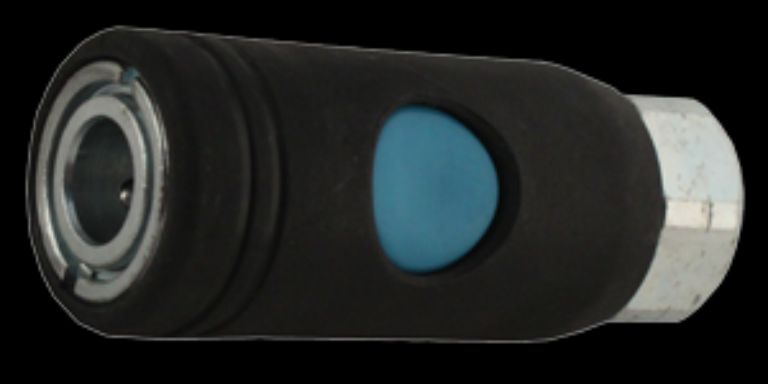

MILTON SAFETY COUPLER A STYLE 1/4 FEMALE PIPE

  • Push button safety couplers
  • 1/4” basic size & 1/4” NPT male and female plugs and couplers available.
  • Double click to engage properly. First click locks coupler and plug; the second click engages the air pressure.
  • To disconnect push the button twice. The first push relieves the air pressure; the second push allows the couple and plug to be disengaged.
  • Coupler body shell material: Fiberglass filled nylon 66
  • Maximum inlet pressure: 225 PSI.
  • Temperature range: -60° F to 140° F.
  • Air flow: 36 SCFM @ 90 PSI.
  • Rubber seal: NBR 80
    Part #: XMS99773
    Availability:
    In Stock
    Price: $37.3125
    i h h
    The Milton Safety Coupler A Style 1/4 Female Pipe features a push-button mechanism that allows for a secure and efficient connection. Designed for 1/4" NPT male and female plugs, this coupler engages with a double-click system that locks the connection and engages air pressure. To disconnect, simply push the button twice to relieve pressure and disengage. Made from fiberglass filled nylon 66, it withstands a maximum inlet pressure of 225 PSI and operates effectively in a temperature range of -60 F to 140 F, making it ideal for various industrial applications.
    Products specifications
    Style A-Style, A-Style
    Thread Size 1/4"
    Type Safety Coupler
