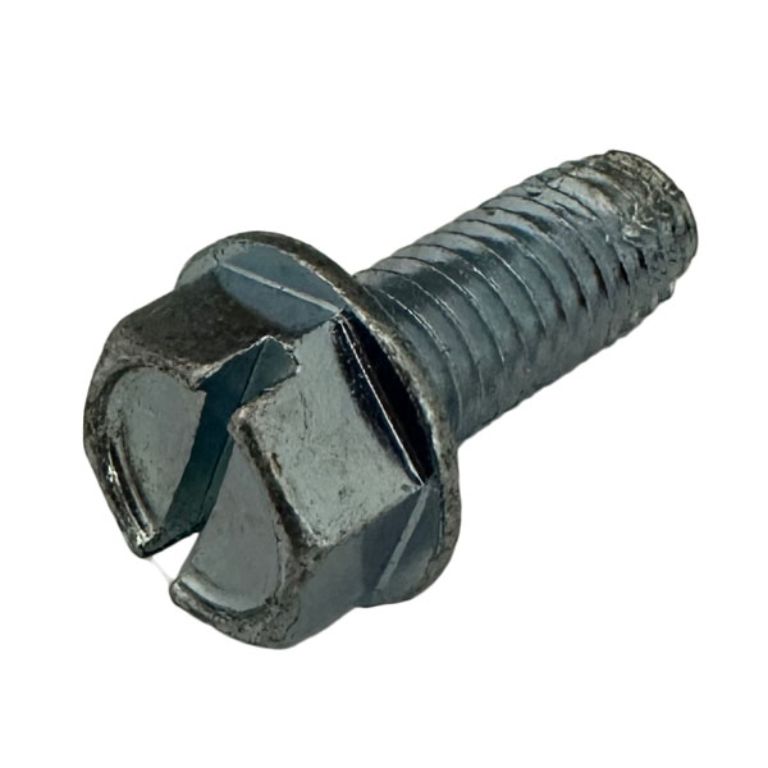

MACHINE SCREW HEX HEAD TYP-F 5/16"-18 X 3/4" THREAD CUTTING

  • A thread cutting screw with machined screw thread pitch, blunt point, tapered entering threads and multiple cutting edges.
  • Steel thread-cutters are used in heavy gauge sheet metal, aluminum, zinc and lead die castings, cast iron, brass and plastic.
  • When using any thread-cutting screw, the material in which the threads are cut should have a lower hardness by at least 10 to 20 Rockwell hardness points.
  • Made from zinc plated AISI 1016-1024 steel or equivalent.
  • Type F thread cutting style.
  • Hex washer slotted head.
  • 5/16-18 diameter.
  • Length of 3/4".
    Part #: 5618X34HTYF
    Availability:
    In Stock
    Price: $39.01
    $0.7801
    i h h
    The MACHINE SCREW HEX HEAD TYP-F 5/16"-18 X 3/4" THREAD CUTTING is engineered for precision and durability in demanding environments. With a length of 3/4 inch and a hex head for secure grip, this screw features a slotted drive style for versatile installation. The 5/16"-18 thread size ensures compatibility with a wide range of materials. Ideal for applications requiring robust fastening, this screw delivers enhanced performance and reliability in industrial settings.
    Products specifications
    Head Type Hex, Hex
    Drive Style Slotted, Slotted
    Length 3/4", 3/4"
    Thread Size 5/16"-18, 5/16"-18
