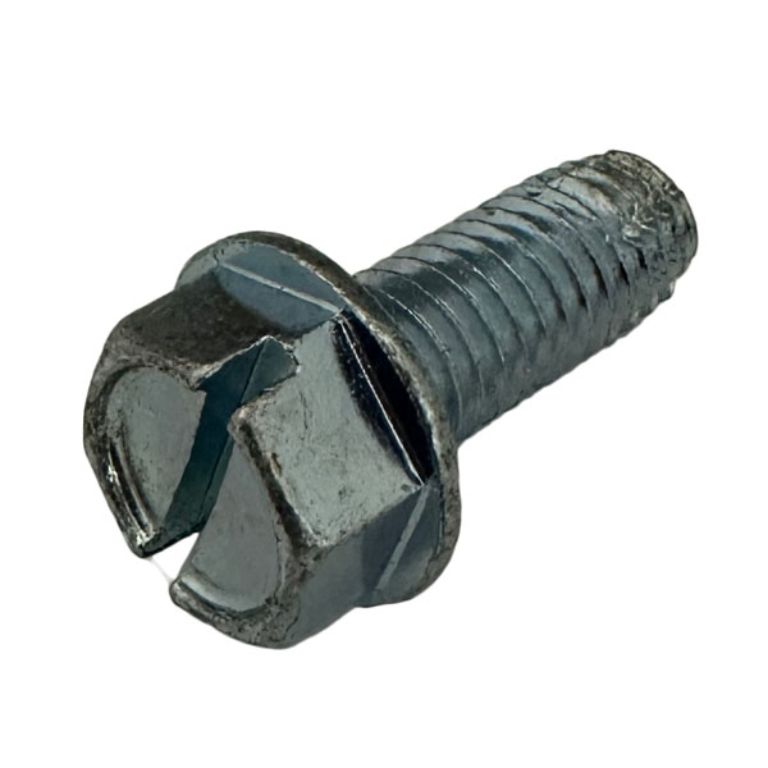

MACHINE SCREW HEX HEAD TYP-F 1/4"-20 X 3/4" THREAD CUTTING

  • A thread cutting screw with machined screw thread pitch, blunt point, tapered entering threads and multiple cutting edges.
  • Steel thread-cutters are used in heavy gauge sheet metal, aluminum, zinc and lead die castings, cast iron, brass and plastic.
  • When using any thread-cutting screw, the material in which the threads are cut should have a lower hardness by at least 10 to 20 Rockwell hardness points.
  • Made from zinc plated AISI 1016-1024 steel or equivalent.
  • Type F thread cutting style.
  • Hex washer slotted head.
  • 1/4-20 diameter.
  • Length of 3/4".
    Part #: 1420X34HTYF
    Availability:
    In Stock
    Price: $42.90
    $0.429
    i h h
    The MACHINE SCREW HEX HEAD TYP-F 1/4"-20 x 3/4" THREAD CUTTING screw features a robust hex head and slotted drive style for secure installation. With a thread size of 1/4"-20, it is ideal for applications requiring precise fastening and reliable performance. This screw is particularly useful in materials that require cutting threads rather than tapping, ensuring a strong grip and reducing the risk of stripping. Manufactured for durability, it meets the demands of both automotive and industrial environments.
    Products specifications
    Head Type Hex
    Drive Style Slotted
    Thread Size 1/4"-20
    Length 3/4"
