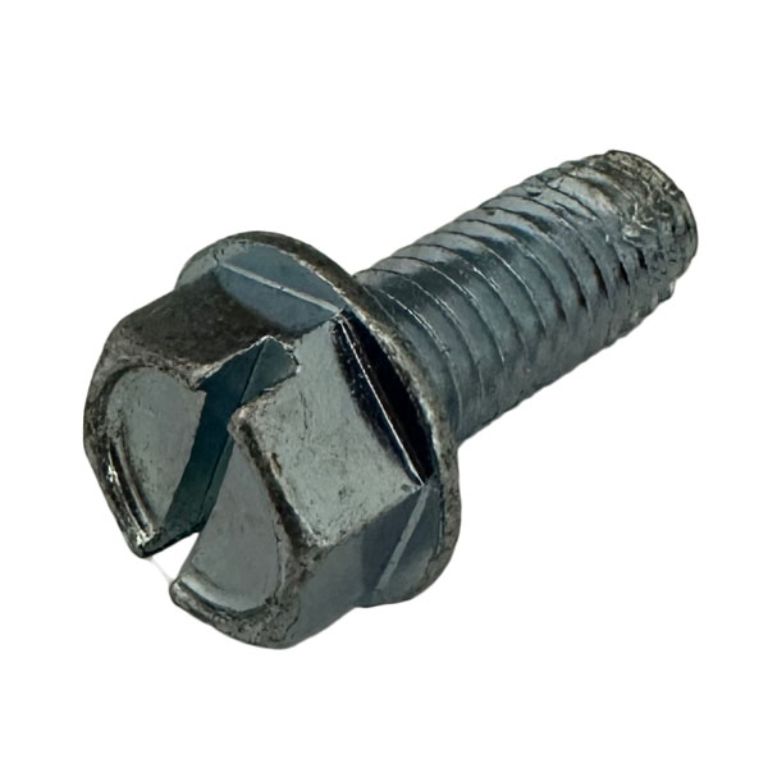

MACHINE SCREW HEX HEAD TYP-F #10-24 X 1/2" THREAD CUTTING

  • A thread cutting screw with machined screw thread pitch, blunt point, tapered entering threads and multiple cutting edges.
  • Steel thread-cutters are used in heavy gauge sheet metal, aluminum, zinc and lead die castings, cast iron, brass and plastic.
  • When using any thread-cutting screw, the material in which the threads are cut should have a lower hardness by at least 10 to 20 Rockwell hardness points.
  • Made from zinc plated AISI 1016-1024 steel or equivalent.
  • Type F thread cutting style.
  • Hex washer slotted head.
  • 10-24 diameter.
  • Length of 1/2".
    Part #: 1024X12HTYF
    Availability:
    In Stock
    Price: $27.60
    $0.276
    i h h
    The MACHINE SCREW HEX HEAD TYP-F #10-24 X 1/2" THREAD CUTTING is engineered for enhanced performance in metal and wood applications. With a length of 1/2 inch and a #10-24 thread size, this screw features a slotted drive style for ease of installation. The hex head design provides a secure grip for torque application, making it ideal for assembly and fastening tasks. This versatile screw is suitable for both industrial and automotive settings, ensuring durability and precision in all your projects.
    Products specifications
    Thread Size #10-24
    Drive Style Slotted
    Head Type Hex
    Length 1/2"
