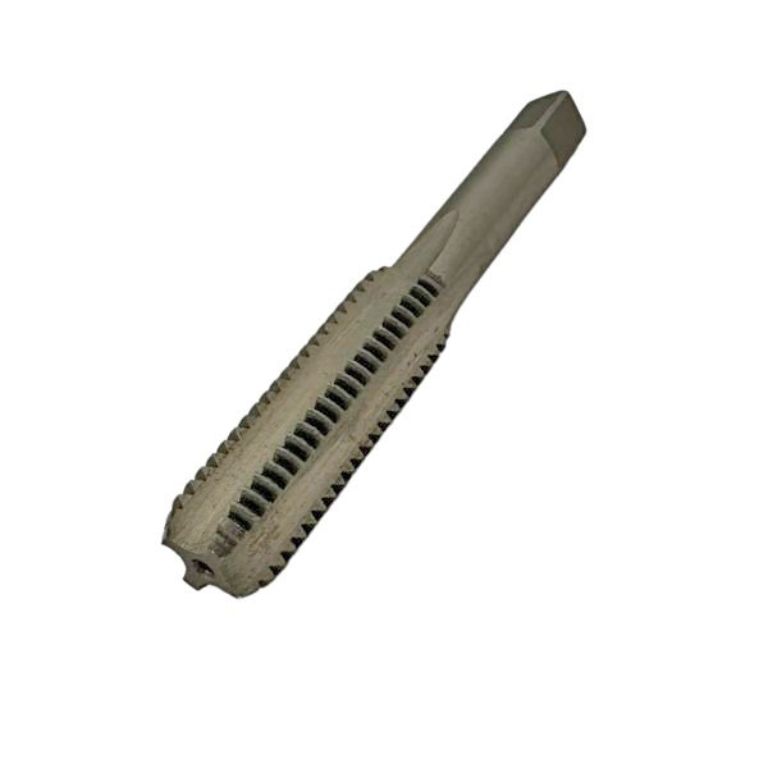

HAND TAP - HIGH SPEED/BOTTOM #10-24

  • High speed bottom hand tap.
  • Made from high quality high speed steel.
  • Can be used in tap wrenches or production tapping heads for general purpose tapping.
  • Standard "H" limits.
  • Threads close to the bottom of blind holes.
  • Chamfer length: 1-2 threads.
  • Size: 10-24.
  • Number of flutes: 4.
  • Length of thread: 7/8".
  • Overall length: 2-3/8".
    Part #: X1024BTAP
    Availability:
    In Stock
    Price: $13.7817
    i h h
    The HAND TAP - HIGH SPEED/BOTTOM #10-24 is crafted from high-quality high-speed steel, ensuring durability and precision in general purpose tapping. Designed for use in tap wrenches or production tapping heads, this tap features standard "H" limits and is capable of threading close to the bottom of blind holes. With a chamfer length of 1-2 threads, a thread length of 7/8", and an overall length of 2-3/8", it includes four flutes for efficient chip removal and smooth operation.
    Products specifications
    Material High Speed Steel
    Shank Square
    Type Hand Tap
    Chamfer Bottom
    Size #10-24
    Overall Length 2-3/8"
