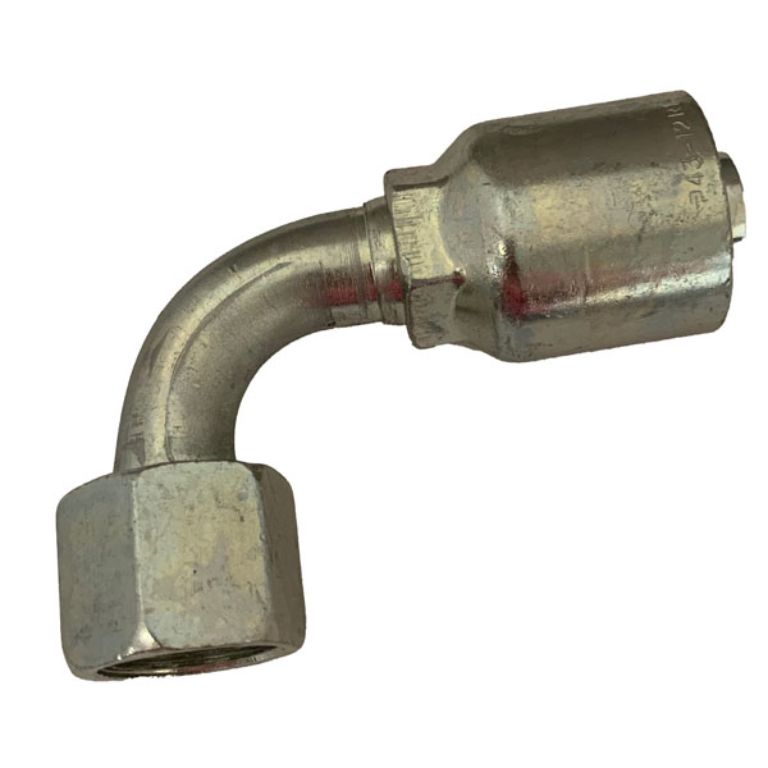

FEMALE JIC 37° SWIVEL 90° EL SHORT DROP 3/4"-16, 1/2" H

  • Parker 43 series fittings are a permanent (crimp) style fitting.
  • Permits quick assembly with the Parker family of Parkrimp crimpers.
  • Assembly of No-Skive hose and fittings does not require removal of the outer cover of the hose.
  • 43 series fittings are made from Chromium-6 free plated steel.
  • These fittings are used with Parker hydraulic braided, light spiral, specialty, suction and return hoses.
  • Female JIC 37° swivel 90° elbow short drop
  • For use with 1/2" hose.
  • 3/4"-16 thread fitting connection.
  • Do not assemble a Parker fitting on a Parker hose that is not specifically listed by Parker for that fitting, or assemble a Parker fitting on another manufacturer's hose.
  • To ensure proper function and safety, you should only use Parker fittings with Parker hose on an approved Parker crimper for the recommended sizes and pressures.
    Part #: X13943-8-8
    Availability:
    Special Order - 7 to 10 day lead time
    Price: $46.97
    i h h
    The Female JIC 37 Swivel 90 El Short Drop fitting features a 3/4"-16 thread and a 1/2" inside diameter, designed for optimal fluid flow in hydraulic applications. Part of the Parker 43 series, this fitting allows for quick assembly with no need to remove the hose's outer cover, ensuring a streamlined installation process. Constructed from Chromium-6 free plated steel, it is compatible with Parker hydraulic braided hoses and provides durability and reliability in demanding environments.
    Products specifications
    Shape Elbow
    Inside Diameter 1/2"
    Gender Female
    Degree 90°
    Port Connection 1/2"
    Style 90° Swivel
    Compatible Fittings 43 Series
    Thread Size 3/4"-16
    Type JIC 37°
    Material Steel
