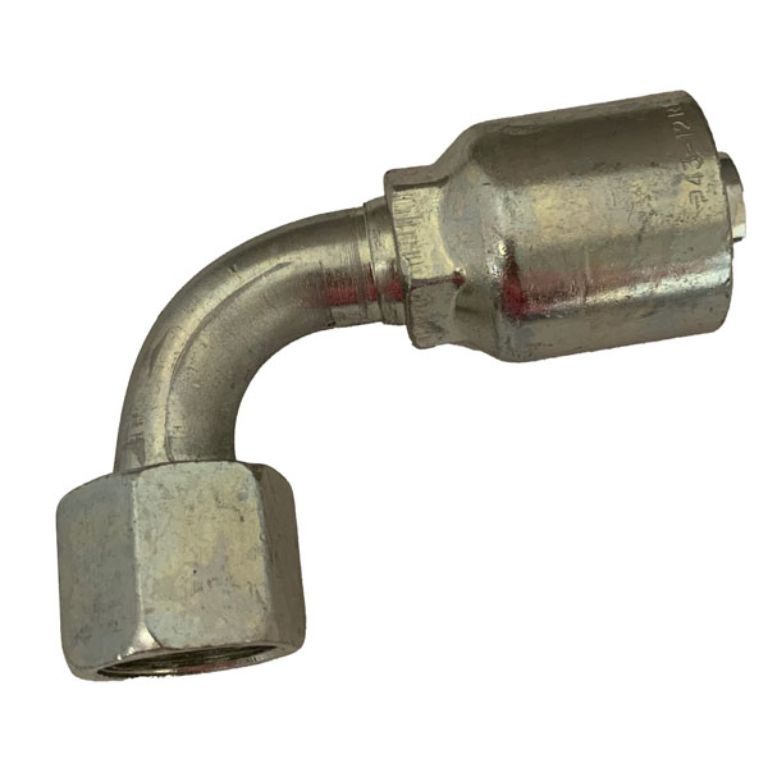

FEMALE JIC 37° SWIVEL 90° EL SHORT DROP 1-1/16"-12, 3/4" H

  • Parker 43 series fittings are a permanent (crimp) style fitting.
  • Permits quick assembly with the Parker family of Parkrimp crimpers.
  • Assembly of No-Skive hose and fittings does not require removal of the outer cover of the hose.
  • 43 series fittings are made from Chromium-6 free plated steel.
  • These fittings are used with Parker hydraulic braided, light spiral, specialty, suction and return hoses.
  • Female JIC 37° swivel 90° elbow short drop
  • For use with 3/4" hose.
  • 1-1/16"-12 thread fitting connection.
  • Do not assemble a Parker fitting on a Parker hose that is not specifically listed by Parker for that fitting, or assemble a Parker fitting on another manufacturer's hose.
  • To ensure proper function and safety, you should only use Parker fittings with Parker hose on an approved Parker crimper for the recommended sizes and pressures.
    Part #: X13943-12-12
    Availability:
    In Stock
    Price: $69.81
    i h h
    The Female JIC 37 Swivel 90 El Short Drop fitting is designed for efficient hydraulic connections in industrial applications. With a 3/4" inside diameter and a 90 elbow shape, it allows for flexible routing of hoses in tight spaces. Constructed from Chromium-6 free plated steel, this fitting ensures durability and compliance with environmental standards. Perfect for use with Parker hydraulic braided hoses, it facilitates quick assembly without the need to remove the outer cover, streamlining installation.
    Products specifications
    Shape Elbow
    Inside Diameter 3/4"
    Degree 90°
    Gender Female
    Port Connection 3/4"
    Thread Size 1-1/16"-12
    Type JIC 37°
    Compatible Fittings 43 Series
    Style 90° Swivel
    Material Steel
