FEMALE JIC 37° SWIVEL 7/16"-20 THREAD, 1/4" HOSE

  • Parker 43 series fittings are a permanent (crimp) style fitting.
  • Permits quick assembly with the Parker family of Parkrimp crimpers.
  • Assembly of No-Skive hose and fittings does not require removal of the outer cover of the hose.
  • 43 series fittings are made from Chromium-6 free plated steel.
  • These fittings are used with Parker hydraulic braided, light spiral, specialty, suction and return hoses.
  • Female JIC 37° swivel
  • For use with 1/4" hose.
  • 7/16"-20 thread fitting connection.
  • Do not assemble a Parker fitting on a Parker hose that is not specifically listed by Parker for that fitting, or assemble a Parker fitting on another manufacturer's hose.
  • To ensure proper function and safety, you should only use Parker fittings with Parker hose on an approved Parker crimper for the recommended sizes and pressures.

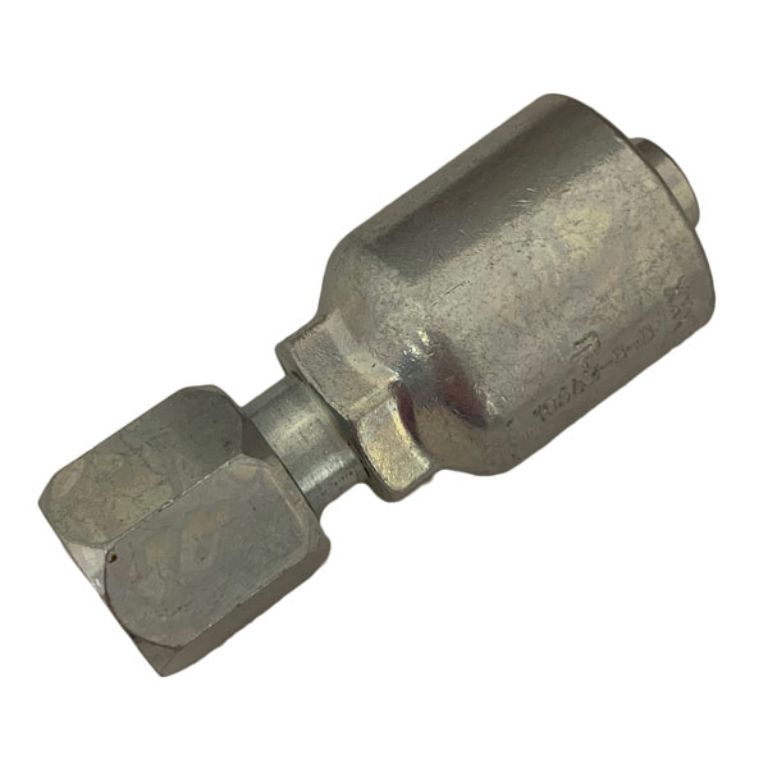

    Part #: X10643-4-4
    Availability:
    In Stock
    Price: $17.28
    i h h
    The X10643-4-4 is a female JIC 37 swivel fitting that features a 7/16"-20 thread and is designed for use with 1/4" hose. This elbow-style fitting allows for easy assembly without the need to remove the hose's outer cover, making it compatible with Parker's No-Skive hose systems. Constructed from Chromium-6 free plated steel, this durable fitting ensures a reliable connection in various hydraulic applications, providing optimal performance and longevity in demanding environments.
    Products specifications
    Shape Elbow
    Degree 37°
    Gender Female
    Inside Diameter 1/4"
    Compatible Fittings 43 Series
    Thread Size 7/16"-20
    Style Swivel
    Material Steel
    Type JIC 37°
    Port Connection 1/4"
