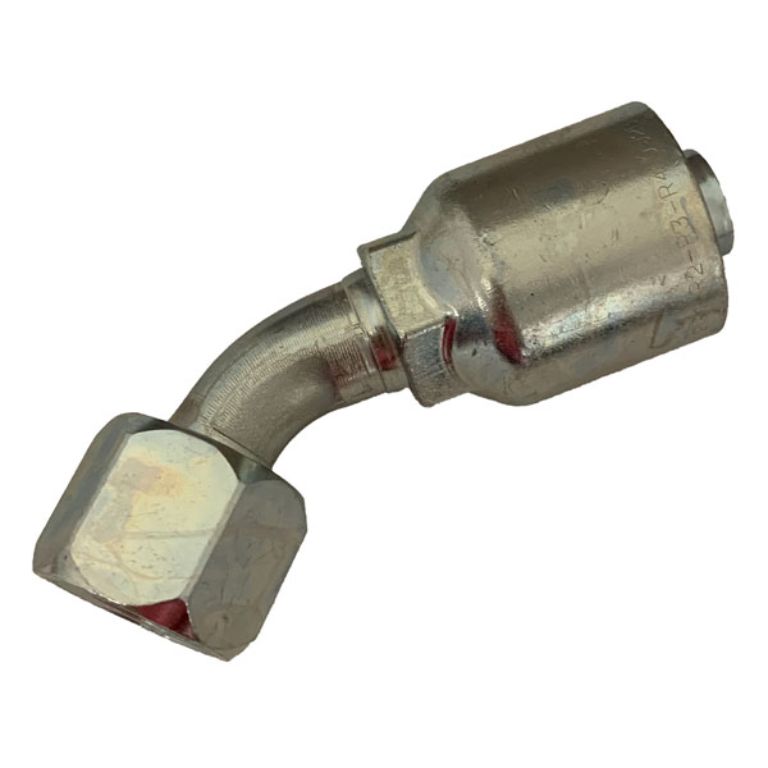

FEMALE JIC 37° SWIVEL 45° EL SHORT DROP 9/16"-18, 3/8" H

  • Parker 43 series fittings are a permanent (crimp) style fitting.
  • Permits quick assembly with the Parker family of Parkrimp crimpers.
  • Assembly of No-Skive hose and fittings does not require removal of the outer cover of the hose.
  • 43 series fittings are made from Chromium-6 free plated steel.
  • These fittings are used with Parker hydraulic braided, light spiral, specialty, suction and return hoses.
  • Female JIC 37° swivel 45° elbow short drop
  • For use with 3/8" hose.
  • 9/16"-18 thread fitting connection.
  • Do not assemble a Parker fitting on a Parker hose that is not specifically listed by Parker for that fitting, or assemble a Parker fitting on another manufacturer's hose.
  • To ensure proper function and safety, you should only use Parker fittings with Parker hose on an approved Parker crimper for the recommended sizes and pressures.
    Part #: X13743-6-6
    Availability:
    In Stock
    Price: $39.305
    i h h
    The FEMALE JIC 37 SWIVEL 45 EL SHORT DROP fitting is designed for quick and reliable assembly in hydraulic applications. With a 9/16"-18 thread size and a 3/8" inside diameter, this fitting allows for flexible connections. Constructed from Chromium-6 free plated steel, it ensures durability and resistance to corrosion. Ideal for use with Parker hydraulic braided hoses, it promotes efficient installation without the need to remove the outer cover of the hose.
    Products specifications
    Gender Female
    Degree 45°
    Shape Elbow
    Inside Diameter 3/8"
    Type JIC 37°
    Thread Size 9/16"-18
    Port Connection 3/8"
    Material Steel
    Style 45° Swivel
    Compatible Fittings 43 Series
