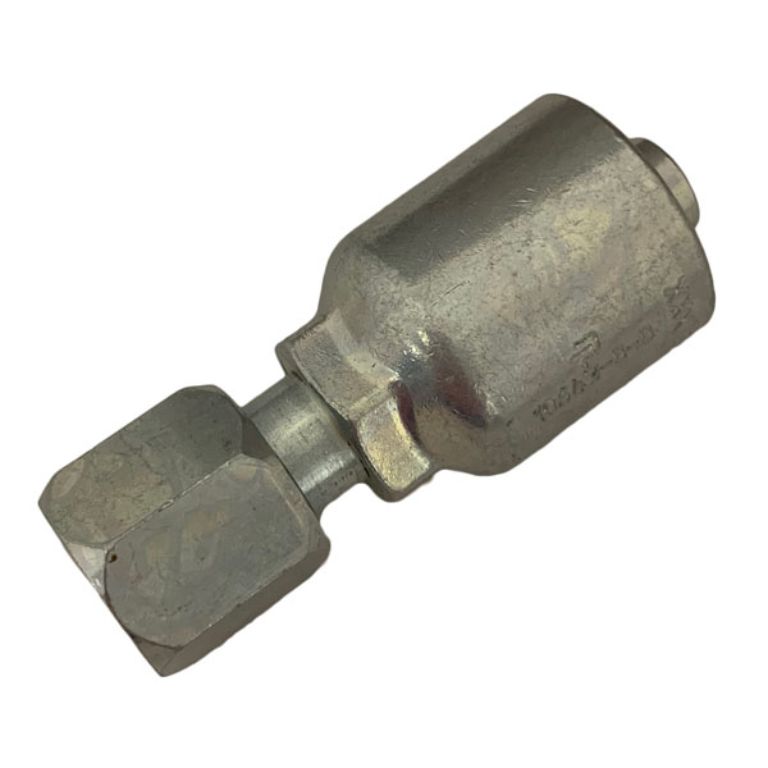

FEMALE JIC 37° SWIVEL 3/4"-16 THREAD, 5/8" HOSE

  • Parker 43 series fittings are a permanent (crimp) style fitting.
  • Permits quick assembly with the Parker family of Parkrimp crimpers.
  • Assembly of No-Skive hose and fittings does not require removal of the outer cover of the hose.
  • 43 series fittings are made from Chromium-6 free plated steel.
  • These fittings are used with Parker hydraulic braided, light spiral, specialty, suction and return hoses.
  • Female JIC 37° swivel
  • For use with 5/8" hose.
  • 3/4"-16 thread fitting connection.
  • Do not assemble a Parker fitting on a Parker hose that is not specifically listed by Parker for that fitting, or assemble a Parker fitting on another manufacturer's hose.
  • To ensure proper function and safety, you should only use Parker fittings with Parker hose on an approved Parker crimper for the recommended sizes and pressures.
    Part #: X10643-8-10
    Availability:
    Special Order - 7 to 10 day lead time
    Price: $63.595
    i h h
    The FEMALE JIC 37 SWIVEL fitting features a 3/4"-16 thread and is compatible with 5/8" hoses, making it ideal for hydraulic applications. Constructed from Chromium-6 free plated steel, this fitting ensures durability and resistance to corrosion. Its design allows for quick assembly with the Parker family of Parkrimp crimpers without the need for removing the outer cover of the hose, streamlining the installation process. Suitable for use in various industrial and automotive hydraulic systems.
    Products specifications
    Shape Straight
    Degree 37°
    Inside Diameter 5/8"
    Gender Female
    Type JIC 37°
    Thread Size 3/4"-16
    Style Swivel
    Port Connection 1/2"
    Material Steel
    Compatible Fittings 43 Series
