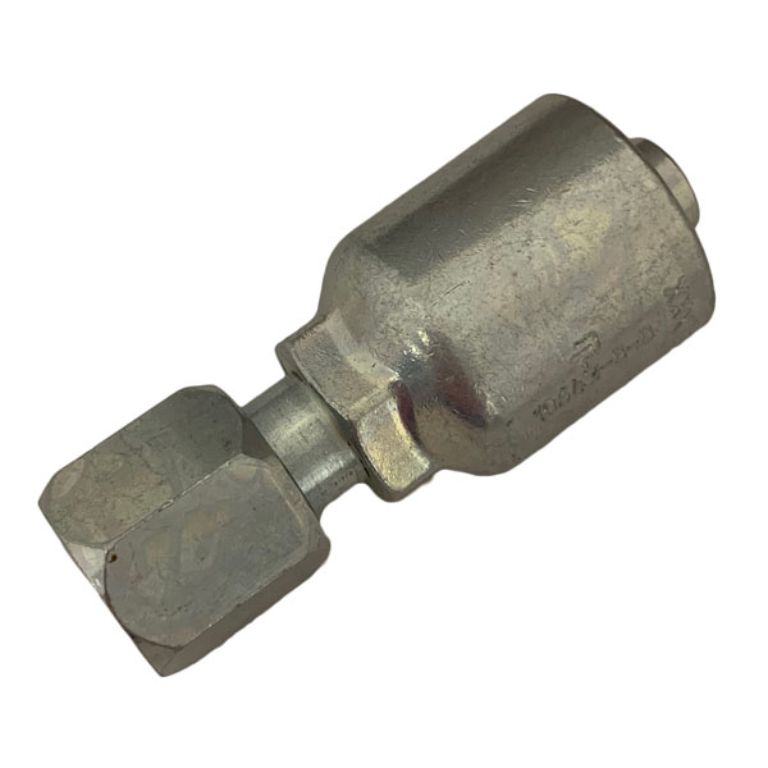

FEMALE JIC 37° SWIVEL 1-5/16"-12 THREAD, 3/4" HOSE

  • Parker 43 series fittings are a permanent (crimp) style fitting.
  • Permits quick assembly with the Parker family of Parkrimp crimpers.
  • Assembly of No-Skive hose and fittings does not require removal of the outer cover of the hose.
  • 43 series fittings are made from Chromium-6 free plated steel.
  • These fittings are used with Parker hydraulic braided, light spiral, specialty, suction and return hoses.
  • Female JIC 37° swivel
  • For use with 3/4" hose.
  • 1-5/16"-12 thread fitting connection.
  • Do not assemble a Parker fitting on a Parker hose that is not specifically listed by Parker for that fitting, or assemble a Parker fitting on another manufacturer's hose.
  • To ensure proper function and safety, you should only use Parker fittings with Parker hose on an approved Parker crimper for the recommended sizes and pressures.
    Part #: X10643-16-12
    Availability:
    Special Order - 7 to 10 day lead time
    Price: $44.31
    i h h
    The FEMALE JIC 37 SWIVEL fitting features a straight design with a 1-5/16"-12 thread and is compatible with 3/4" hose. Constructed from Chromium-6 free plated steel, this fitting ensures reliable performance in hydraulic applications. Its crimp style allows for quick assembly using Parker's Parkrimp crimpers, eliminating the need for removing the hose's outer cover. Ideal for use with Parker hydraulic braided hoses, this fitting provides a secure and efficient connection for various industrial applications.
    Products specifications
    Inside Diameter 3/4"
    Shape Straight
    Gender Female
    Degree 37°
    Style Swivel
    Thread Size 1-5/16"-12
    Type JIC 37°
    Material Steel
    Port Connection 1"
    Compatible Fittings 43 Series
