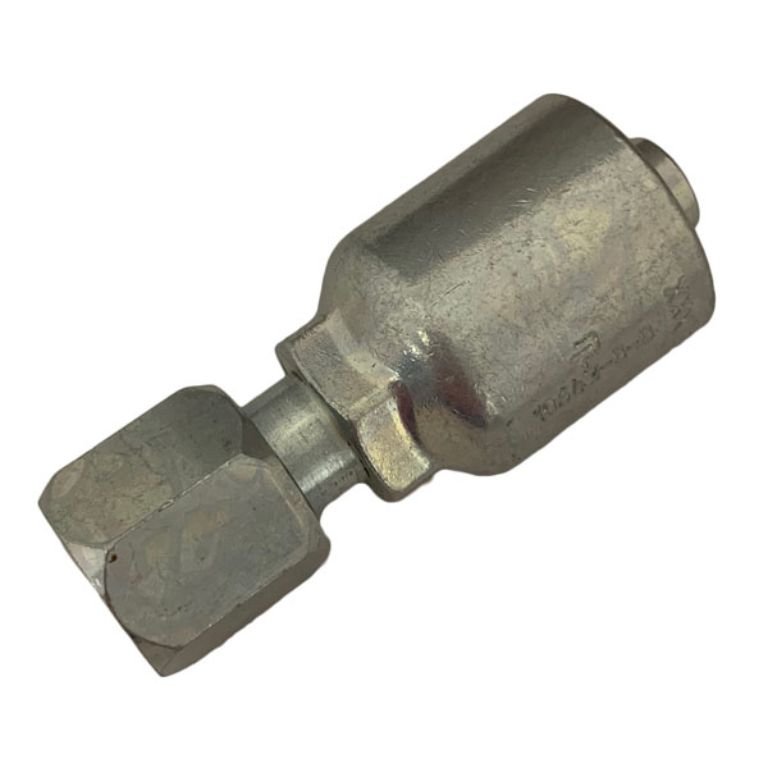

FEMALE JIC 37° SWIVEL 1"-1/16"-12 THREAD, 5/8" HOSE

  • Parker 43 series fittings are a permanent (crimp) style fitting.
  • Permits quick assembly with the Parker family of Parkrimp crimpers.
  • Assembly of No-Skive hose and fittings does not require removal of the outer cover of the hose.
  • 43 series fittings are made from Chromium-6 free plated steel.
  • These fittings are used with Parker hydraulic braided, light spiral, specialty, suction and return hoses.
  • Female JIC 37° swivel
  • For use with 5/8" hose.
  • 1"-1/16"-12 thread fitting connection.
  • Do not assemble a Parker fitting on a Parker hose that is not specifically listed by Parker for that fitting, or assemble a Parker fitting on another manufacturer's hose.
  • To ensure proper function and safety, you should only use Parker fittings with Parker hose on an approved Parker crimper for the recommended sizes and pressures.
    Part #: X10643-12-10
    Availability:
    Special Order - 7 to 10 day lead time
    Price: $36.89
    i h h
    The FEMALE JIC 37 SWIVEL fitting is designed for reliable and efficient hydraulic connections, featuring a 1"-1/16"-12 thread and accommodating a 5/8" hose diameter. This straight fitting is part of the Parker 43 series, known for its permanent crimp style, which allows for quick assembly using Parker's Parkrimp crimpers. Made from Chromium-6 free plated steel, this fitting ensures durability and compliance with industry standards, making it ideal for use in various hydraulic applications.
    Products specifications
    Shape Straight
    Degree 37°
    Gender Female
    Inside Diameter 5/8"
    Style Swivel
    Compatible Fittings 43 Series
    Thread Size 1"-1/16"-12
    Port Connection 3/4"
    Type JIC 37°
    Material Steel
