Bolts
HEX CAP SCREW BOLT UNF ZINC 3/8"-24 X 4-1/2", GR 5
38X412F
- Made from medium carbon steel.
- Heat treated.
- Tensile strength: 120,000 psi. minimum.
- Zinc plated.
- Unified screw threads :UNF.
- Diameter: 3/8"-24.
- Length: 4-1/2".
$98.585
$1.9717
$1.9717
MACHINE SCREW PHIL FLAT HD 1/4"-20 X 2-3/4" STAINLESS
X1420X234FHPS
- A straight shank fastener with external threads designed to go through a hole or nut that is pre-tapped to form a mating thread for the screw.
- Machine screws form a fastening superior in strength to spaced thread screws.
- Stainless steel machine screws are used in applications which require general atmospheric corrosion resistance.
- Used in food processing machinery and refrigeration equipment.
- Stainless is also superior to steel in withstanding some elevation in application operating temperature while maintaining its strength.
$36.36
$0.7272
$0.7272

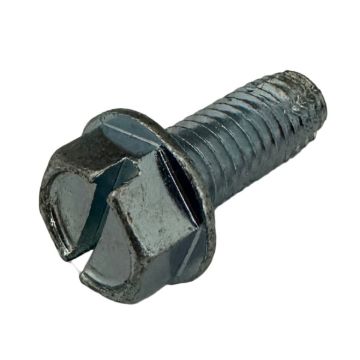

MACHINE SCREW HEX HEAD TYP-F 1/4"-20 X 2" THREAD CUTTING
X1420X2HTYF
- A thread cutting screw with machined screw thread pitch, blunt point, tapered entering threads and multiple cutting edges.
- Steel thread-cutters are used in heavy gauge sheet metal, aluminum, zinc and lead die castings, cast iron, brass and plastic.
- When using any thread-cutting screw, the material in which the threads are cut should have a lower hardness by at least 10 to 20 Rockwell hardness points.
- Made from zinc plated AISI 1016-1024 steel or equivalent.
- Type F thread cutting style.
- Hex washer slotted head.
- 1/4-20 diameter.
- Length of 2".
$118.37
$1.1837
$1.1837
MACHINE SCREW PHIL TRUSS HD 1/4"-20 X 2" STAINLESS
X1420X2THPS
- A straight shank fastener with external threads designed to go through a hole or nut that is pre-tapped to form a mating thread for the screw.
- Machine screws form a fastening superior in strength to spaced thread screws.
- Stainless steel machine screws are used in applications which require general atmospheric corrosion resistance.
- Used in food processing machinery and refrigeration equipment.
- Stainless is also superior to steel in withstanding some elevation in application operating temperature while maintaining its strength.
$107.17
$1.0717
$1.0717
SOCKET HEAD CAPSCREW UNC STAINLESS 1/4"-20 X 3/4"
X1420X34SHCS
- Stainless Steel
- Cylindrical head with a flat chamfered top surface.
- Knurled cylindrical sides and hexagonal recess.
- Ideal for precision assembly work with close tolerances, and applications needing a well tooled appearance.
- Supplies greater tensile strength than equivalent sizes of grade 5 and grade 8 hex cap screws while requiring less surface area or counterbore since the fastener is internally wrenched.
- Diameter: 1/4-20"
- Length: 3/4"
$27.37
$0.2737
$0.2737
MACHINE SCREW PHIL PAN HD 1/4"-20 X 3" STAINLESS
X1420X3PSS
- A straight shank fastener with external threads designed to go through a hole or nut that is pre-tapped to form a mating thread for the screw.
- Machine screws form a fastening superior in strength to spaced thread screws.
- Stainless steel machine screws are used in applications which require general atmospheric corrosion resistance.
- Used in food processing machinery and refrigeration equipment.
- Stainless is also superior to steel in withstanding some elevation in application operating temperature while maintaining its strength.
- Made from 18-8 stainless
- Pan head Phillips.
- 1/4-20 diameter.
- Length of 3".
$112.00
$1.12
$1.12
HEX CAP SCREW BOLT METRIC ZINC M14-1.50 X 40, CL 8.8
X14X1.5X40M
- Hex head cap screw with metric thread pitch made from medium carbon steel.
- Heat treated.
- Tensile strength: 800 Newtons/mm² minimum.
- Plain finish.
- Metric fine threads.
$50.2325
$2.0093
$2.0093
FRAME BOLT FLANGE HD, NON-SERRATED, UNC ZINC 1/4"-20 X 2" GR 8
X14X2CFL8Z
- Made from high alloy steel.
- One piece hex washer head bolt with a flat bearing surface.
- For use on truck frames.
- Flange eliminates washers and helps compensate for a misaligned hole.
- Zinc finish.
$170.91
$1.7091
$1.7091
HEX CAP SCREW BOLT METRIC ZINC M14-2.00 X 45 CL 10.9
X14X45M10.9
- Hex head cap screw with metric thread pitch made from medium carbon alloy steel.
- Heat treated.
- Tensile strength: 1040 Newtons/mm² minimum.
- Zinc plated.
- Metric coarse threads.
- Diameter: M14-2.00.
- Length: 45 mm.
$58.715
$2.3486
$2.3486
HEX CAP SCREW BOLT METRIC ZINC M16-2.0 X 30, CL 8.8
X16X30M
- Hex head cap screw with metric thread pitch made from medium carbon steel.
- Heat treated.
- Tensile strength: 800 Newtons/mm² minimum.
- Zinc plated.
- Metric coarse threads.
- Diameter: M16-2.0.
- Length: 30 mm.
$59.9975
$2.3999
$2.3999
HEX CAP SCREW BOLT METRIC ZINC M16-2.00 X 50 CL 10.9
X16X50M10.9
- Hex head cap screw with metric thread pitch made from medium carbon alloy steel.
- Heat treated.
- Tensile strength: 1040 Newtons/mm² minimum.
- Zinc plated.
- Metric coarse threads.
- Diameter: M16-2.00.
- Length: 50 mm.
$54.5075
$2.1803
$2.1803
HEX CAP SCREW BOLT METRIC ZINC M18-2.50 X 60, CL 10.9
X18X60M10.9
- Greater tensile strength than class 8.8 bolts.
- Heat treated.
- Hex head cap screw with metric threads pitch made from medium carbon alloy steel.
- Metric coarse and fine threads.
- Most comparable but not exactly equivalent to US grade 8 cap screws.
$153.00
$6.12
$6.12
HEX CAP SCREW BOLT METRIC ZINC M20-2.50 X 50, CL 10.9
X20X50M10.9
- Hex head cap screw with metric thread pitch made from medium carbon alloy steel.
- Heat treated.
- Tensile strength: 1040 Newtons/mm² minimum.
- Zinc plated.
- Metric coarse threads.
- Diameter: M20-2.50.
- Length: 50 mm.
- Class 10.9
$39.672
$3.9672
$3.9672
HEX CAP SCREW BOLT METRIC ZINC M20-2.50 X 70, CL 10.9
X20X70M10.9
- Greater tensile strength than class 8.8 bolts.
- Heat treated.
- Hex head cap screw with metric threads pitch made from medium carbon alloy steel.
- Metric coarse and fine threads.
- Most comparable but not exactly equivalent to US grade 8 cap screws.
$87.0525
$3.4821
$3.4821
HEX CAP SCREW BOLT METRIC ZINC M4-.70 X 16, CL 8.8
4X16M
- Hex head cap screw with metric thread pitch made from medium carbon steel.
- Heat treated.
- Tensile strength: 800 Newtons/mm² minimum.
- Zinc plated.
- Metric coarse threads.
- Diameter: M4-.70.
- Length: 16 mm.
$23.24
$0.2324
$0.2324

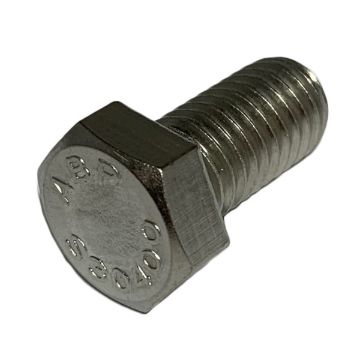

HEX CAP SCREW UNC STAINLESS 5/16"-18 X 3/4"
5634CSS
- Grade 18-8 stainless steel hex cap screws.
- Used in products that require general atmospheric corrosion resistance such as chemical and food processing equipment and marine applications.
- Tensile strength: 100,000 psi. minimum.
- Unified screw threads :UNC.
- Diameter: 5/16"-18.
- Length: 3/4".
$32.67
$0.3267
$0.3267
HEX CAP SCREW BOLT UNC ZINC 5/16"-18 X 2-3/4", GR 5
56X234C
- Hex head cap screw with metric thread pitch made from medium carbon alloy steel.
- Heat treated.
- Tensile strength: 120,000 psi. minimum.
- Zinc plated.
- Unified screw threads :UNC.
- Diameter: 5/16"-18.
- Length: 2-3/4".
$58.45
$0.5845
$0.5845
HEX CAP SCREW BOLT UNF ZINC 5/16"-24 X 2", GR 5
56X2F
- Made from medium carbon steel.
- Heat treated.
- Tensile strength: 120,000 psi. minimum.
- Zinc plated.
- Unified screw threads :UNF.
- Diameter: 5/16-24.
- Length: 2".
$119.46
$1.1946
$1.1946
