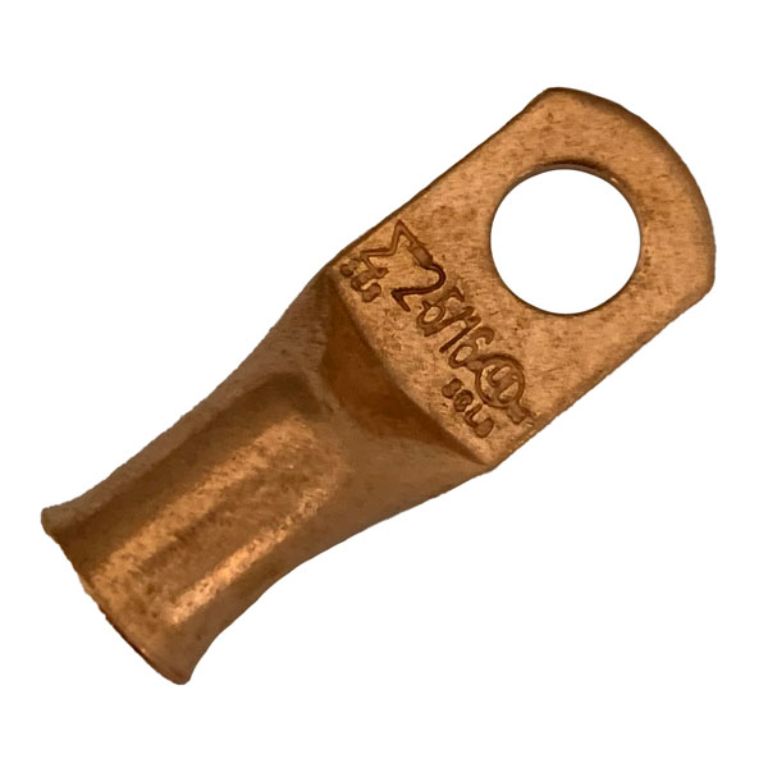

BATTERY TERMINAL COPPER LUG 2 GAUGE, 5/16" STUD

  • Copper lugs.
  • Made from CDA-110 copper stock offering 100% conductivity.
  • Crimps in industry standard tooling.
  • Can be easily soldered or crimped.
  • Seamless barrel design.
  • Flared barrel entry for easy wire insertion.
  • AWG wire size identification on barrel.
  • UL listed, CSA certified.
  • Heavy duty for 600V applications.
  • 2 wire gauge, 5/16 stud.
    Part #: L256
    Availability:
    In Stock
    Price: $77.96
    $3.1182
    i h h
    The BATTERY TERMINAL COPPER LUG 2 GAUGE, 5/16" STUD is crafted from CDA-110 copper stock, providing 100% conductivity for optimal performance. Its seamless barrel design and flared entry enable easy wire insertion and secure connections. This lug is compatible with industry-standard crimping tools and can also be soldered for added versatility. With AWG wire size identification on the barrel and UL listing, this component is ideal for automotive and industrial applications requiring dependable electrical connections.
    Products specifications
    Gauge 2 ga, 2
    Type Copper Lug
    Stud Size 5/16"
